基于GPS数据的MODIS近红外水汽线性回归模型

doi:10.13284/j.cnki.rddl.003207

摘要/Abstract

摘要：

针对地基GPS反演水汽空间不连续以及MODIS近红外水汽产品精度不足的问题,利用2010年香港地区地基GPS水汽数据和MODIS近红外水汽数据,提出了一种基于地基GPS订正MODIS水汽产品继而得到高精度空间连续分布可降水汽的方法。通过比较3种干延迟模型,选取最适合香港地区的Hopfield模型并利用高精度软件GAMIT解算GPS水汽,建立GPS水汽与MODIS水汽之间的线性模型,以实现对MODIS近红外水汽产品的逐月订正。结果表明,经过订正的MODIS水汽产品在各月的MRE、RMSE、PBIAS均有所改善,该方法能够有效融合地基GPS和MODIS的优点,可以得到连续区域的高精度水汽数据,这对天气预报、气候监测等有重要意义。

关键词: 可降水汽, 地基GPS, MODIS近红外水汽产品, 订正, 香港

Abstract:

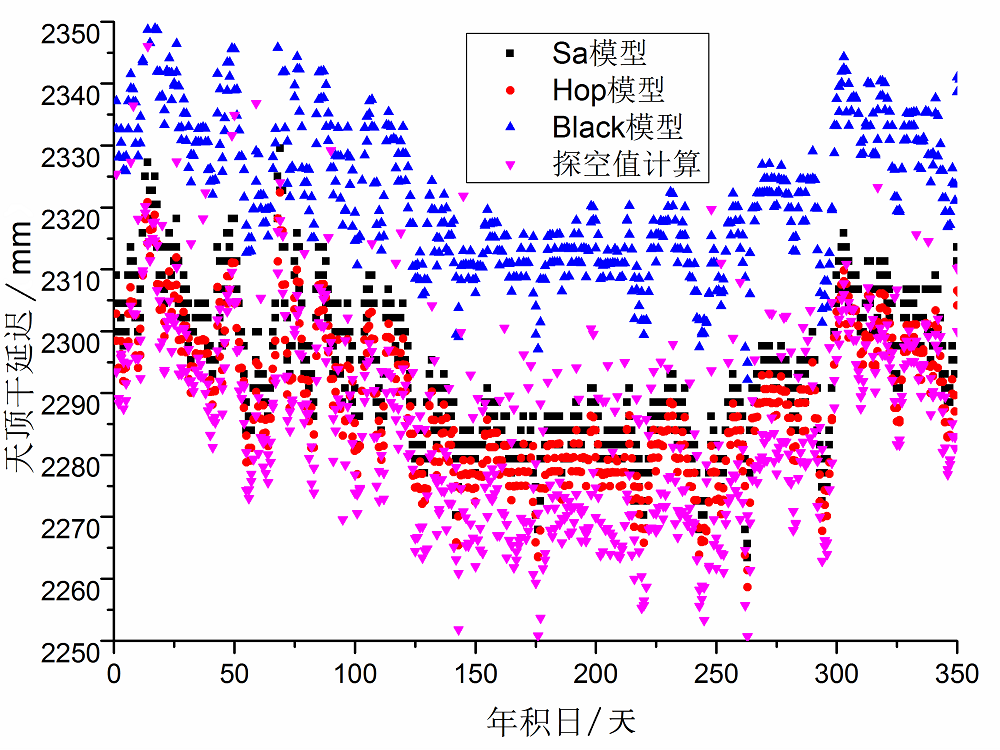

We studied the Global Positioning System (GPS) Precipitable Water Vapor (PWV) and moderate resolution imaging spectroradiometer (MODIS) PWV in Hong Kong (using the data from 2010) and hierarchically stacked the sounding data based on the MATLAB platform because a monthly model of MODIS PWV products corrected by the ground-based GPS data has not yet been established and the accuracy evaluation of the corrected MODIS PWV products has not yet been conducted. We relied on the sounding dry delay calculations performed using the vertical integration method and compared and analyzed three universal dry delay models (Saastamoinen, Hopfield, and Black). The results denote that the Mean Relative Error (MRE), Root Mean Square Error (RMSE), and Percent BIAS (PBIAS) values calculated using the Hopfield model are the smallest, and the R values are slightly higher when compared with those calculated using the remaining two models. Therefore, for our Hong Kong study, we selected the Hopfield model as the most appropriate to invert the zenith dry delay and to solve the zenith hydrostatic delay. Further, we calculated the zenith total delay using the high-precision software GAMIT. The difference between the zenith total delay and zenith dry delay is referred to as the zenith wet delay, which can be used to obtain the GPS PWV. By considering the water vapor calculated by sounding as the true value, the comparison of GPS PWV and sounding PWV denotes that the water vapor retrieved by ground-based GPS is close to the sounding PWV and can reveal the characteristics of high water vapor in summer and low water vapor in autumn and winter. By calculation, we determined the MRE, RMSE, PBIAS, and R of the two methods to be 6.96%, 2.79 mm, -2.37%, and 0.98, respectively, indicating that ground-based GPS inversion is feasible and that the changes in local water vapor can be used to revise the MODIS near-infrared water vapor products. The obviously underestimated water vapor value inverted by MODIS is considerably different from the sounding PWV and GPS PWV. By calculation, the MRE between MODIS PWV and GPS PWV is 21.12%, RMSE is 15.29 mm, PBIAS is 19.22%, and R is 0.63. The proposed model is constructed to revise the MODIS water vapor products monthly by fitting the linear relation between GPS PWV and MODIS PWV monthly. The results denote that the MODIS PWV and GPS PWV exhibit a certain linear fitting each month. The fitting degree in January, March, May, July, August, and December is slightly better than that in the remaining six months. The MODIS water vapor products obtained by ground-based GPS exhibit improved MRE, RMSE, and PBIAS every month, and their accuracy has significantly improved. Therefore, they can be reliably used for water-vapor monitoring in Hong Kong.

Key words: Precipitable Water Vapor, ground-based GPS, MODIS Near-IR Water Vapor, Correction, Hong Kong

中图分类号:

P228.4

杨娇, 史岚, 王茜雯, 何其全. 基于GPS数据的MODIS近红外水汽线性回归模型[J]. 热带地理, 2020, 40(1): 137-144.

Yang Jiao, Shi Lan, Wang Qianwen, He Qiquan. Moderate Resolution Imaging Spectroradiometer Near-Infrared Water Vapor Linear Regression Model Based on the Global Positioning System Data[J]. Tropical Geography, 2020, 40(1): 137-144.

图/表 9

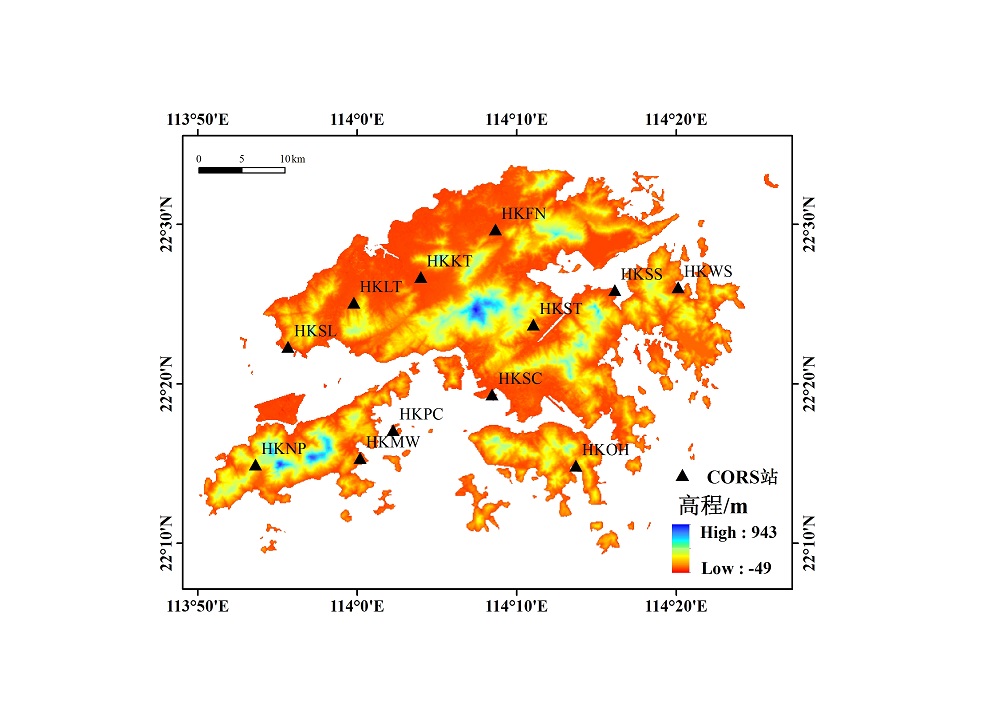

图1

图2

表1

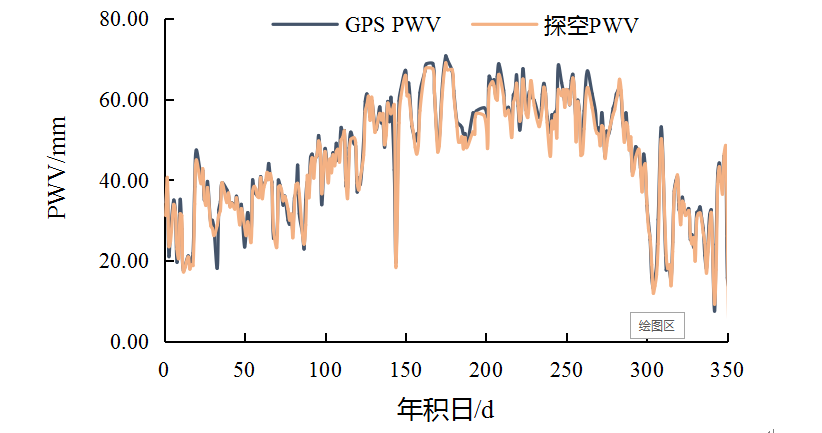

图3

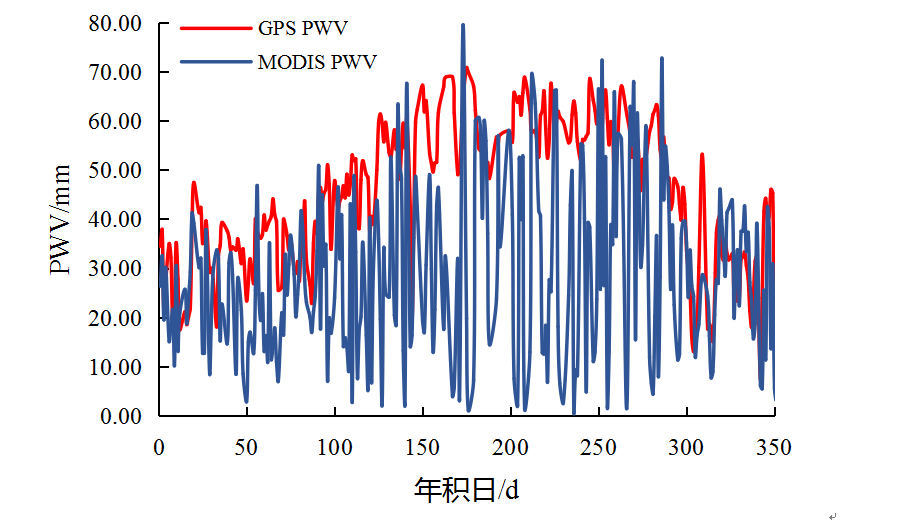

图4

图5

表2

表3

图6

参考文献 28

[1]	Asken J and Nordius H . 1987. Estimation of Tropospheric Delay for Microwaves from Surface Weather Data. Radio Science, 22:379-386.
[2]	Bevis M, Businger S and Herring T A . 1992. GPS Meteorology: Remote Sensing of Atmospheric Water Vapor Using the Global Positioning System. Geophysics Research, 97:15787-15801.
[3]	曹艳丰, 陈宝献, 陈秀万, 肖汉 . 2014. 基于GPS数据的MODIS大气可降水量反演精度提高模型. 遥感信息, 29(2):21-25.
	[ Cao Yanfeng, Chen Baoxian, Chen Xiuwan and Xiao Han . 2014. A Real-Time Accuracy Model of MODIS PWV Using GPS PWV Data. Remote Sensing Information, 29(2):21-25. ]
[4]	陈宏 . 2014. 水汽放大法在PMP估算中的改进与探讨. 南京:南京信息工程大学.
	[ Chen Hong . 2014. Improvement and Discussion of Moisture Maximization in Estimation of PMP. Nanjing: Nanjing University of Information Science & Technology. ]
[5]	陈娇娜, 李国平, 黄文诗, 刘碧全, 杨东 . 2009. 华西秋雨天气过程中GPS遥感水汽总量演变特征. 应用气象学报, 20(6):753-760.
	[ Chen Jiaona, Li Guoping, Huang Wenshi, Liu Biquan and Yang Dong . 2009. The Evolution Features of Precipitable Water Vapor Derived from Ground-based GPS During Autumn Rain Weather Process in West China. Journal of Applied Meteorological Science, 20(6):753-760. ]
[6]	崔彩霞, 杨青, 赵玲, 李杨 . 2008. MODIS近红外大气可降水含量与乌鲁木齐地基GPS水汽数据的对比分析. 沙漠与绿洲气象,( 1):1-4.
	[ Cui Caixia, Yang Qing, Zhao Ling and Li Yang . 2008. Comparison Analysis between Retrieval Data of MODIS Near-Infrared Precipitable Water Vapor and GPS Precipitable Water Vapor in Urumqi. Desert and Oasis Meteorology, ( 1):1-4. ]
[7]	段茜茜, 曲建光, 高伟, 王帅民 . 2017. 基于GPS的MODIS近红外可降水量季节性模型建立. 测绘工程, 26(12):21-26.
	[ Duan Xixi, Qu Jianguan, Gao Wei and Wang Shuaimin . 2017. Seasonal Model Establishment of MODIS Near Infrared Precipitable Water Vapor Based on GPS. Engineering of Surveying and Mapping, 26(12):21-26. ]
[8]	方圣辉, 毕创, 乐源, 裴鉴 . 2016. 利用GPS可降水量校正MODIS近红外水汽数据. 测绘科学,( 41):38-41.
	[ Fang Shenghui, Bi Chung, Le Yuan and Pei Jian . 2016. Calibration of MODIS Near Infrared Vapor Products Using Precipitable Water Vapor Retrieved from GPS Data. Science of Surveying and Mapping, ( 41):38-41. ]
[9]	侯建国, 杨成生, 张勤, 王宏宇 . 2010. GPS可降水汽与MODIS可降水汽回归性分析. 地理与地理信息科学, 26(2):42-45,113.
	[ Hou Jianguo, Yang Chengsheng, Zhang Qin and Wang Hongyu . 2010. Regression Analysis between GPS PWV and MODIS PWV. Geography and Geo-Information Science, 26(2):42-45, 113. ]
[10]	Isioye O, Combrinck L and Botai J B . 2016. Modeling and Validation of the Weighted Mean Temperature in the West African Region: Implications for GNSS Meteorology. Meteorological Applications, 23(4):614-632.
[11]	Kealy J, Foster J and Businger S . 2012. GPS Meteorology: An Investigation of Ocean-Based Precipitable Water Estimates. Journal of Geophysical Research Atmospheres, 117(D17):D17303.
[12]	李斐, 刘智敏, 李洋洋, 郭金运 . 2018. 青岛地区CORS反演水汽中大气加权平均温度模型的建立. 全球定位系统, 43(3):88-94.
	[ Li Fei, Liu Zhimin, Li Yangyang and Guo Jinyun . 2018. Research of Local Model of Weighted Mean Temperature of CORS Water Vapor Retrieval in Qingdao. GNSS World of China, 43(3):88-94. ]
[13]	李建国, 毛节泰, 李成才, 夏青 . 1999. 使用全球定位系统遥感水汽分布原理和中国东部地区加权“平均温度”的回归分析. 气象学报,( 3):28-37.
	[ Li Jianguo, Mao Jietai, Li Chengcai and Xia Qing . 1999. The Approach to Remote Sensing of Water Vapor Based on GPS and Linear Regression TM in Eastern Region of China. Acta Meteorologica Sinica, ( 3):28-37. ]
[14]	李经纬, 陈刚, 李水平, 金波文 . 2019. 新疆地区对流层加权平均温度模型分析. 测绘科学,( 4):1-8.
	[ Li Jingwei, Chen Gang, Li Shuiping and Jin Bowen . 2019. Analysis of Weighted Mean Tropospheric Temperature Model in Xinjiang Region. Science of Surveying and Mapping, ( 4):1-8. ]
[15]	Liu L L, Chen X P and Feng H Y . 2015. Research on the Model of Atmospheric Water Vapor Conversion Factor with Considering Terrain Fluctuation. Nanjing: International Conference on International Society for Optics and Photonics, 98081M.
[16]	刘立龙, 黎峻宇, 蔡成辉, 林国标, 黄良珂 . 2017. 广西地区大气水汽转换系数的K值模型. 桂林理工大学学报, 37(1):103-107.
	[ Liu Lilong, Li Junyu, Cai Chenghui, Lin Guobiao and Huang Liangke . 2017. Modeling for Transformation Coefficient K Value of Water Vapor in Guangxi. Journal of Guilin University of Technology, 37(1):103-107. ]
[17]	Mekik C and Deniz I . 2017. Modeling and Validation of the Weighted Mean Temperature for Turkey. Meteorological Applications, 24(1):92-100.
[18]	孟宪红, 吕世华, 张堂堂 . 2007. MODIS近红外水汽产品的检验、改进及初步应用——以黑河流域金塔绿洲为例. 红外与毫米波学报,( 2):107-111.
	[ Meng Xianhong, Lv Shihua and Zhang Tangtang . 2007. Testing Improvement and Application of MODIS Near Infrared Water Vapor Products-Taking Jinta Oasis in Heihe River Basin as A Case Study. J. Infrared Millim. Waves, ( 2):107-111. ]
[19]	汤中山 . 2016. 地基GPS反演大气可降水量及三维层析的应用研究. 南昌:东华理工大学.
	[ Tang Zhongshan . 2016. Study on the Application of the Ground GPS Inversion of Atmospheric Precipitation and 3D Tomography. Nanchang: East China University of Technology. ]
[20]	王茜雯 . 2018. 地基GPS融合多源数据的香港地区水汽含量估算研究. 南京:南京信息工程大学.
	[ Wang Qianwen . 2018. Estimation of Water Vapor Content in Hongkong Area Based on GPS Fusion with Multi Source Data. Nanjing: Nanjing University of Information Science & Technology. ]
[21]	王西地 . 2017. 基于GPS和MODIS数据的大气可降水量算法研究. 南京:东南大学.
	[ Wang Xidi . 2017. Research on Precipitable Water Vapor Based on GPS And Modis Data. Nanjing: Southeast University. ]
[22]	王勇, 徐肖遥, 刘严萍, 李江波 . 2018. 基于GPS的河北省冬春季节MODIS水汽校正模型研究. 大地测量与地球动力学, 38(10):1001-1004,1010.
	[ Wang Yong, Xu Xiaoyao, Liu Yanping and Li Jiangbo . 2018. The Correction Model of MODIS PWV in Spring and Winter of Hebei Province Based on GPS. Journal of Geodesy and Geodynamics, 38(10):1001-1004, 1010. ]
[23]	徐优伟, 张胜凯, 鄂栋臣, 赵云 . 2016. 4种对流层模型在南极地区的适用性分析. 测绘地理信息, 41(4):18-22.
	[ Xu Youwei, Zhang Shengkai, E Dongchen and Zhao Yun . 2016. Applicibility Analysis of Four Tropospheric Models in Antarctic Region. Journal of Geomatics, 41(4):18-22. ]
[24]	赵晓磊 . 2015. 基于多源数据的大气可降水量反演模型试验研究. 北京:中国地质大学.
	[ Zhao Xiaolei . 2015. Experimental Research on Retrieval Model for Precipitable Water Vapor Based on Multi-source Data. Beijing: China University of Geosciences. ]
[25]	张景奎 . 1996. 香港的地形和气候. 中学地理教学参考,( Z2):73-74.
	[ Zhang Jingkui . 1996. Topography and Climate of Hong Kong. Geography Teaching Reference in Middle Schools, ( Z2):73-74. ]
[26]	张俊东, 陈秀万, 李颖, 罗鹏, 万玮, 曹艳丰 . 2013. 基于GPS数据的MODIS近红外水汽改进反演算法研究. 地理与地理信息科学, 29(2):40-44.
	[ Zhang Jundong, Chen Xiuwan, LI Ying, Luo Peng, Wan Wei and Cao Yanfeng . 2013. Research on Improved Retrieval Algorithm of MODIS Near-IR Water Vapor Based on GPS Data. Geography and Geo-Information Science, 29(2):40-44. ]
[27]	张鹏飞 . 2013. 地基GPS探测水汽理论与技术研究. 西安:长安大学.
	[ Zhang Pengfei . 2013. The Theory and Technology Research of Ground-Based GPS Detecting Water Vapor. Xi’an: Chang’an University. ]
[28]	张杏清, 周元华 . 2015. GPS与MODIS数据融合的D-InSAR大气延迟改正方法研究. 测绘通报,( 8):13-18.
	[ Zhang Xingqing and Zhou Yuanhua . 2015. Research on D-InSAR Atmospheric Delay Correction with CORS and MODIS. Bulletin of Surveying and Mapping, ( 8):13-18. ]

统计类型	Saastamoinent模型	Hopfield模型	Black模型
MRE/%	0.51	0.35	1.63
RMSE/mm	14.64	12.59	38.92
R	0.729	0.730	0.729
PBIAS/%	-0.36	-0.13	-1.62

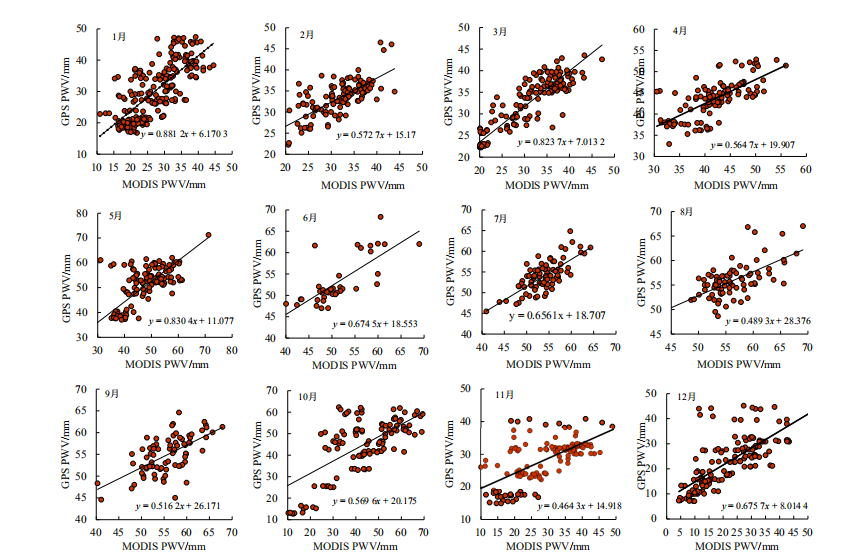

月份	a	b	月份	a	b	月份	a	b	月份	a	b
1	0.88	6.17	4	0.56	19.91	7	0.66	18.71	10	0.57	20.18
2	0.57	15.1	5	0.83	11.08	8	0.49	28.38	11	0.46	14.92
3	0.82	7.01	6	0.67	18.55	9	0.52	26.17	12	0.68	8.01

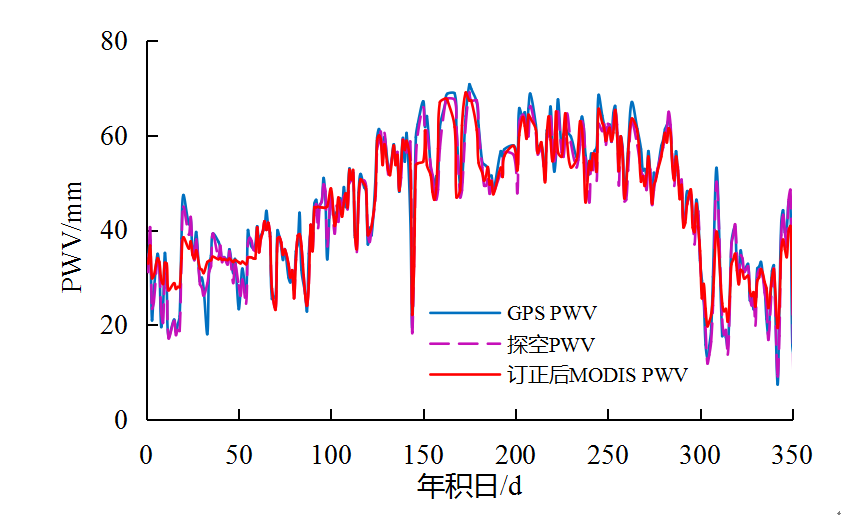

月份	订正前			订正后
月份	MRE/%	RMSE/mm	PBIAS/%	MRE/%	RMSE/mm	PBIAS/%
1	17.00	6.76	9.64	8.51	3.48	8.30
2	17.52	7.34	17.41	11.03	5.42	10.02
3	17.36	8.35	16.37	8.43	3.31	6.38
4	19.32	11.78	18.81	6.18	3.56	4.97
5	22.87	19.96	24.38	10.29	6.61	10.01
6	35.01	28.72	36.26	4.07	2.60	2.87
7	13.02	9.11	8.47	3.54	2.33	0.50
8	18.12	16.07	12.44	4.04	2.83	1.26
9	12.20	13.70	5.13	5.06	3.46	-4.11
10	21.43	15.12	12.08	10.38	3.81	2.99
11	20.17	10.49	9.42	18.11	6.09	-4.92
12	25.19	7.93	10.55	24.36	3.71	1.47
