热带地理 ›› 2020, Vol. 40 ›› Issue (2): 266-277.doi: 10.13284/j.cnki.rddl.003230
张晨1,2, 周霞1,2(), 李勇1,2, 杨骥1,2, 李林3
收稿日期:
2019-12-05
修回日期:
2020-03-04
出版日期:
2020-03-10
发布日期:
2020-05-15
通讯作者:
周霞
E-mail:153711441@qq.com
作者简介:
张晨(1993—),女,硕士,主要研究方向为地理信息系统与遥感,(E-mail) 1024029982@qq.cm。
基金资助:
Zhang Chen1,2, Zhou Xia1,2(), Li Yong1,2, Yang Ji1,2, Li Lin3
Received:
2019-12-05
Revised:
2020-03-04
Online:
2020-03-10
Published:
2020-05-15
Contact:
Zhou Xia
E-mail:153711441@qq.com
摘要:

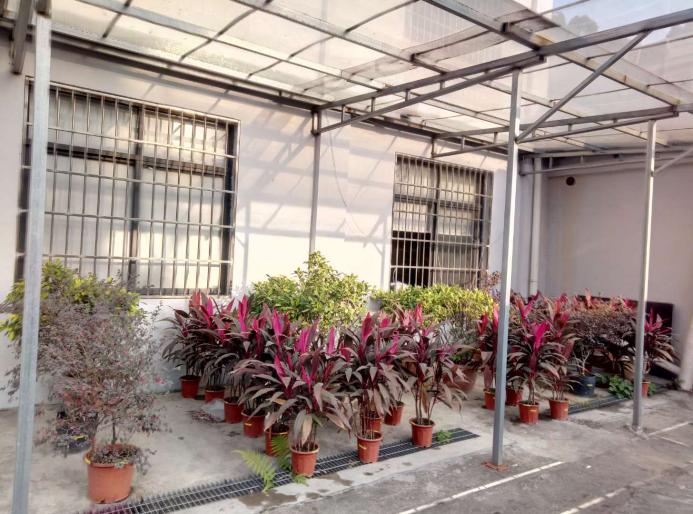

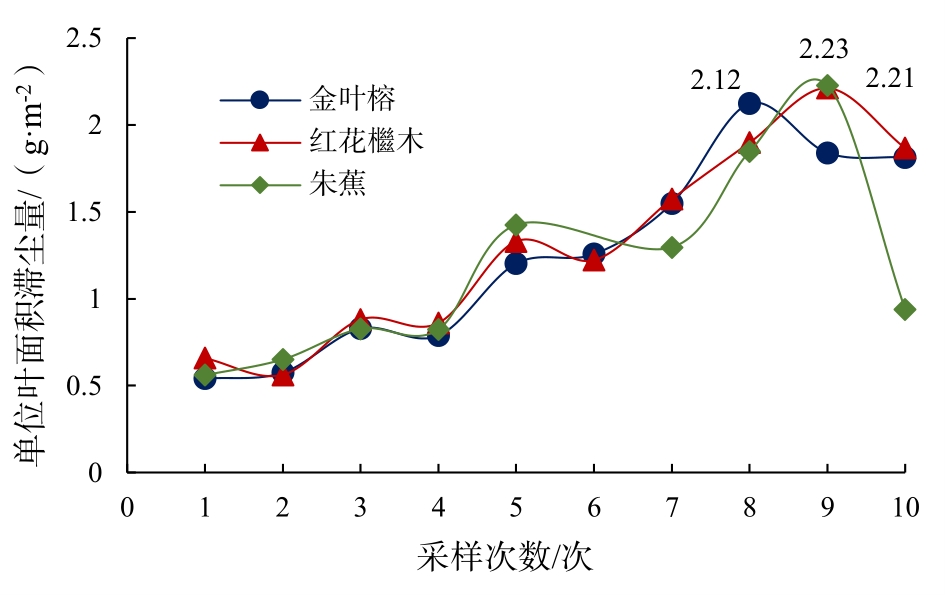

基于广州市常见的绿化植物,采用高光谱遥感技术,通过设计半封闭的大棚实验方案,探讨了滞尘污染下不同植物叶片的光谱特征,结果表明:1)滞尘时间是影响绿化植物累积滞尘量的一个重要因子,滞尘量随着时间的增加而增加,但达到饱和之后会呈减少的趋势。2)在可见光波段,受叶面尘影响,叶片光谱反射率升高,且随滞尘量的增加而升高;在近红外波段则相反,光谱反射率随滞尘量的增加而降低。3)叶面尘对植物叶片的光谱特征参数具有直接或间接的影响,其中滞尘量与植物的三边位置无关,与归一化植被指数NDVI呈负相关关系,且不同植物的NDVI受叶面尘影响的程度不同,从大到小依次为:朱蕉>红花檵木>金叶榕。文章设计的半封闭大棚实验方案为植物滞尘效应的长时间可持续性研究提供了新思路。
中图分类号:
张晨, 周霞, 李勇, 杨骥, 李林. 半封闭大棚实验下广州市植被滞尘光谱特征分析[J]. 热带地理, 2020, 40(2): 266-277.
Zhang Chen, Zhou Xia, Li Yong, Yang Ji, Li Lin. Spectral Characteristics of Dust-Retention Plants in Guangzhou under Semi-Closed Greenhouse Experiment[J]. Tropical Geography, 2020, 40(2): 266-277.
表1
光谱特征参数的定义"
参数 | 定义 | ||
---|---|---|---|
光谱吸收特征参数 | 绿峰位置 | 波长510~560 nm范围内最大反射率所对应的波长位置 | |
绿峰反射率 | 波长510~560 nm范围内的最大反射率 | ||
红谷位置 | 波长640~680 nm范围内最小反射率所对应的波长位置 | ||
红谷反射率 | 波长640~680 nm范围内的最小反射率 | ||
三边参数 | 红边参数 | 红边斜率 | 680~750 nm范围内反射率一阶导数的最大值 |
红边位置 | 680~750 nm范围内反射率一阶导数的最大值所对应的波长 | ||
红边面积 | 680~750 nm范围内反射率一阶导数的和 | ||
蓝边参数 | 蓝边斜率 | 490~530 nm范围内反射率一阶导数的最大值 | |
蓝边位置 | 490~530 nm范围内反射率一阶导数的最大值所对应的波长 | ||
蓝边面积 | 490~530 nm范围内反射率一阶导数的和 | ||
黄边参数 | 黄边斜率 | 550~580 nm范围内反射率一阶导数的最大值 | |
黄边位置 | 550~580 nm范围内反射率一阶导数的最大值所对应的波长 | ||
黄边面积 | 550~580 nm范围内反射率一阶导数的和 | ||
植被指数 | NDVI | 近红外波段的反射值与红外波段的反射值之差比上两者之和 |
