基于加权光滑样条的多云雨地区NDVI重构——以广东省为例

doi:10.13284/j.cnki.rddl.003286

摘要/Abstract

摘要：

为探讨加权光滑样条算法（sspw）在多云雨地区重构高质量NDVI的效果，以广东省为研究区，对其范围内2005—2015年MOD13Q1 NDVI数据进行重构。为证实sspw在重构多云雨地区NDVI的优势，选取多云雨样区的重构影像进行对比，并将未加权滤波［普通光滑样条（ssp）、Savitzky-Golay（SG）滤波］与加权滤波（sspw、加权SG滤波）重构的NDVI时序曲线进行对比。结果发现：1）sspw能有效重构多云雨地区NDVI。2）与未加权滤波相比，在质量权重的辅助下，加权滤波重构的NDVI数据时间序列曲线更接近原始NDVI上包络线，加权滤波重构的NDVI与原始NDVI线性相关性更强，误差更小；而加权滤波中，sspw比加权SG（Savitzky-Golay）滤波更能抑制图像中的噪音。总体来说，sspw重构的数据误差更小，与原始高质量数据相关性更强，重构效果更好，更适合多云雨地区。

关键词: 多云雨地区, 加权光滑样条对比, NDVI重构, 滤波, 广东省

Abstract:

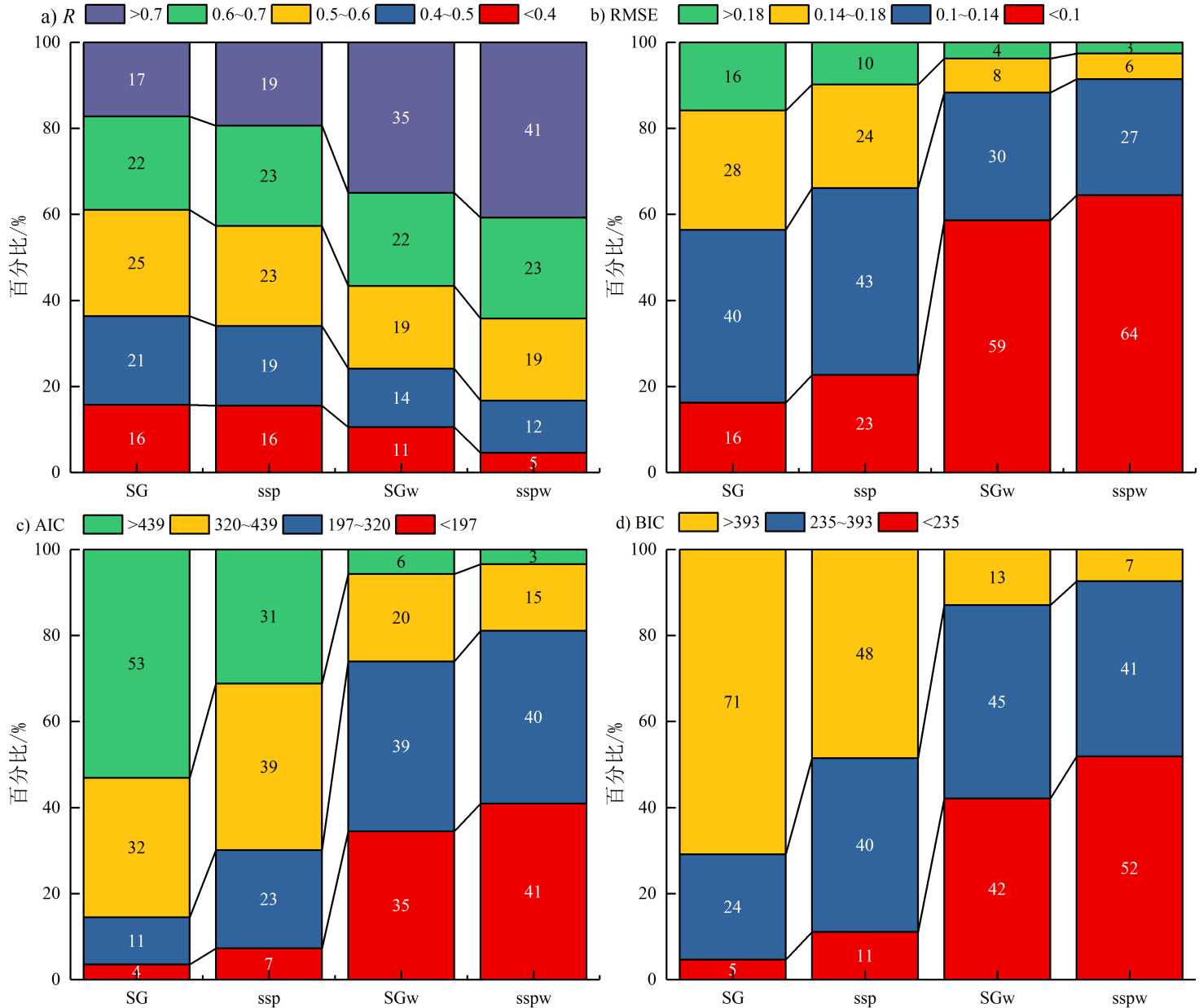

Compared with other regions, there are more low-quality pixels in the Normalized Difference Vegetation Index (NDVI) of cloudy and rainy areas in terms of temporal and spatial distribution. This would increase the difficulty of reconstructing a high-quality NDVI in cloudy and rainy areas. Guangdong Province—located in the subtropical monsoon region of southern China—is a typical cloudy and rainy province with a high intensity of human activities. Therefore, it is particularly significant to study vegetation change and the response of vegetation to human activities in Guangdong and reconstruct a high-quality NDVI within it. To verify that a weighted smooth spline (sspw) can reconstruct a high-quality NDVI in cloudy and rainy areas and provide reliable data for follow-up studies, this paper takes Guangdong Province as an example and uses MOD13Q1 NDVI from 2000 to 2005 to reconstruct its NDVI. Further, to verify the reliability of the NDVI reconstructed by sspw, the results are compared with those of smooth spline (ssp), Savitzky-Golay (SG), and weighted SG filter (SGw). The following conclusions were drawn. First, compared with SGw, sspw, and SG, sspw-reconstructed NDVI had the largest number of strong correlations and low error pixels. In the correlation coefficient results, 41% of the NDVI pixels reconstructed by sspw had a correlation coefficient of more than 0.7 with the original; in the root mean square error, 64% of the NDVI pixels reconstructed by sspw had an error of less than 0.1 with the original. In terms of Akaike's Information Criterion (AIC) and Bayesian Information Criterion (BIC), the NDVI reconstructed by sspw had 41% of all pixels' AIC < 197 (lower AIC) and 52% of all pixels' BIC < 235 (lower BIC), respectively. This indicates that sspw can reconstruct a high-quality NDVI in cloudy and rainy areas. Second, while the NDVI curve characteristics of typical sample points can be used to determine the reasonable range of the spar coefficient, spar = 0.25 is more suitable for NDVI reconstruction in Guangdong Province. Third, compared with the unweighted ssp and SG, the NDVI time series curve reconstructed by sspw and SGw with quality weight is closer to the original value. Finally, compared with the NDVI reconstructed by sspw, in cloudy and rainy areas, the NDVI reconstructed by SG and SGw will retain some noise and abnormal values in the low- and high-value parts. Therefore, sspw is more suitable for NDVI reconstruction in cloudy and rainy areas.

Key words: cloudy and rainy areas, weighted smooth spline comparison, NDVI reconstruction, filter, Guangdong Province

中图分类号:

TP751

阮柱, 匡耀求. 基于加权光滑样条的多云雨地区NDVI重构——以广东省为例[J]. 热带地理, 2020, 40(6): 1051-1062.

Zhu Ruan, Yaoqiu Kuang. Normalized Difference Vegetation Index Reconstruction of Cloudy and Rainy Areas Based on Weighted Smooth Spline: A Case Study of Guangdong Province[J]. Tropical Geography, 2020, 40(6): 1051-1062.

图/表 8

表1

表2

图1

图3

图4

图5

图6

图7

参考文献 0

	Akaike H. 1974. A New Look at the Statistical Model Identification. IEEE Transactions on Automatic Control, 19(6): 716-723.
	Beck P S A, Atzberger C, Hgda K A, Johansen B and Skidmore A K. 2006. Improved Monitoring of Vegetation Dynamics at Very High latitudes: A New Method Using MODIS NDVI. Remote Sensing of Environment, 99(3): 321-334.
	Beer C, Reichstein M, Tomelleri E, Ciais P, Jung M, Carvalhais N, Rödenbeck C, Arain M A, Baldocchi D, Bonan G B, Bondeau A, Cescatti A, Lasslop G, Lindroth A, Lomas M, Luyssaert S, Margolis H, Oleson K W, Roupsard O, Veenendaal E, Viovy N, Williams C, Woodward F I and Papal D. 2010. Terrestrial Gross Carbon Dioxide Uptake: Global Distribution and Covariation with Climate. Science, 329(5993): 834.
	Chen J M, Deng F and Chen M Z. 2006. Locally Adjusted Cubic-Spline Capping for Reconstructing Seasonal Trajectories of a Satellite-Derived Surface Parameter. IEEE Transactions on Geoscience & Remote Sensing, 44(8): 2230-2238.
	Chen J, Jonsson P, Tamura M, Gu Z H, Matsushita B and Eklundh L. 2004. A Simple Method for Reconstructing a High-Quality NDVI Time-Series Data Set Based on the Savitzky-Golay Filter. Remote Sensing of Environment, 91(3): 332-344.
	Chai T and Draxler R. 2014. Root Mean Square Error (RMSE) or Mean Absolute Error (MAE)? Geosci. Model Dev., 7: 1247-1250.
	Eilers P H C. 2003. A Perfect Smoother. Analytical Chemistry, 75(14): 3631-3636.
	范娜，谢高地，张昌顺，陈龙，李文华，成升魁．2012．2001年至2010年澜沧江流域植被覆盖动态变化分析．资源科学，34（7）：1222-1231．[Fan Na, Xie Gaodi, Zhang Changshun, Chen Long, Li Wenhua and Cheng Shengkui. 2012. Spatial-Temporal Dynamic Changes of Vegetation Cover in Lancang River Basin during 2001-2010. Resources Science, 34(7): 1222-1231. ]
	Gerber F, De Jong R, Schaepman M E, Schaepman-Strub G and Furrer R. 2018. Predicting Missing Values in Spatio-Temporal Remote Sensing Data. IEEE Transactions on Geoscience & Remote Sensing, 56(5): 2841-2853.
	Green P J and Silverman B W. 1994. Nonparametric Regression and Generalized Linear Models: A Roughness Penalty Approach. London: Chapman and Hall, 1-88.
	Jackson R B, Randerson J T, Canadell J G, Anderson R G, Avissar R, Baldocchi D D, Bonan G B, Caldeira K, Diffenbaugh N S, Field C B, Hungate B A, Jobbágy E G, Kueppers L M, Nosetto M D and Pataki D E. 2008. Protecting Climate with Forests. Environmental Research Letters, 3(4): 044006.
	Jonsson P and Eklundh L. 2002. Seasonality Extraction by Function Fitting to Time-Series of Satellite Sensor Data. IEEE Transactions on Geoscience & Remote Sensing, 40(8): 1824-1832.
	Jonsson P and Eklundh L. 2004. TIMESAT—A Program for Analyzing Time-Series of Satellite Sensor Data. Computers & Geosciences, 30(8): 833-845.
	蒋敏，李秀彬，辛良杰，谭明洪．2019．南方水稻复种指数变化对国家粮食产能的影响及其政策启示．地理学报，74（1）：34-45．[Jiang Min, Li Xiubin, Xin Liangjie and Tan Minghong. 2019. Impact of Paddy Rice Multiple Cropping Index Implications. Acta Geographica Sinica, 74(1): 34-45. ]
	Kleynhans W, Olivier J C, Wessels K J, Bergh F V D, Salmon B P and Steenkamp K C. 2010. Improving Land Cover Class Separation Using an Extended Kalman Filter on MODIS NDVI Time-Series Data. IEEE Geoscience & Remote Sensing Letters, 7(2): 381-385.
	Kong D D, Zhang Y Q, Gu X H and Wang D G. 2019. A Robust Method for Reconstructing Global MODIS EVI Time Series on the Google Earth Engine. ISPRS Journal of Photogrammetry and Remote Sensing, 155: 13-24.
	Liang S Z, Ma W D, Sui X Y, Yao H M, L H Z, Liu T, Hou X H and Wang M. 2017. Extracting the Spatiotemporal Pattern of Cropping Systems from NDVI Time Series Using a Combination of the Spline and HANTS Algorithms: A Case Study for Shandong Province. Canadian Journal of Remote Sensing, 43(1): 1-15.
	Lu X L, Liu R G, Liu J Y and Liang S L. 2007. Removal of Noise by Wavelet Method to Generate High Quality Temporal Data of Terrestrial MODIS Products. Photogrammetric Engineering & Remote Sensing, 73(10): 1129-1139.
	李晓光，刘华民，王立新，卓义．2014．鄂尔多斯高原植被覆盖变化及其与气候和人类活动的关系．中国农业气象，35（4）：470-476．[Li Xiaoguang, Liu Huamin, Wang Lixin and Zhuo Yi. 2014. Vegetation Cover Change and Its Relationship Between Climate and Human Activities in Ordos Plateau. Chinese Journal of Agrometeorology, 35(4): 470-476. ]
	林楚勇，邓玉娇，徐剑波，曹静，胡猛．2015．基于MODIS的广东省气溶胶光学厚度时空分布特征分析．热带气象学报，31（6）：821-826．[Lin Chuyong, Deng Yujiao, Xu Jianbo, Cao Jing and Hu Meng. 2015. Variation and Spatial Distribution of Aerosol Optical Depth in Guangdong Province Based on MODIS Data. Journal of Tropical Meteorology, 31(6): 821-826. ]
	Pearson K. 1920. Notes on the History of Correlation. Biometrika, 13(1): 25-45.
	Roerink G J, Menenti M and Verhoef W. 2000. Reconstructing Cloud Free NDVI Composites Using Fourier Analysis of Time Series. International Journal of Remote Sensing, 21(9): 1911-1917.
	Savitzky A and Golay M J E. 1964. Smoothing and Differentiation of Data by Simplified Least Squares Procedures. Analytical Chemistry, 36(8): 1627-1639.
	Schwarz G. 1978. Estimating the Dimension of a Model. Annals of Statistic, 6(2): 461-464.
	宋春桥，柯灵红，游松财，刘高焕，钟新科．2011．基于TIMESAT的3种时序NDVI拟合方法比较研究——以藏北草地为例．遥感技术与应用，26（2）：147-155．[Song Chunqiao，Ke Linghong, You Songcai, Liu Gaohuan and Zhong Xinke. 2011. Comparison of Three NDVI Time-Series Fitting Methods Based on TIMESAT—Taking the Grassland in Northern Tibet as Case. Remote Sensing Technology and Application, 26(2): 147-155. ]
	Viovy N, Arino O and Belward A S. 1992. The Best Index Slope Extraction (BISE): A Method for Reducing Noise in NDVI Time-Series. International Journal of Remote Sensing, 13(8): 1585-1590.
	王园香，唐世浩，郑照军．2015．1982-2006年中国5-9月的NDVI变化与人类活动影响分析．地球信息科学学报，27（11）：1333-1340．[Wang Yuanxiang, Tang Shihao and Zheng Zhaojun. 2015. Analysis of NDVI and the Impact of Human Activity in China from May to September during 1982 to 2006. Geo-Information Science, 27(11): 1333-1340. ]
	吴文斌，杨鹏，唐华俊，周清波，Shibasaki Ryosuke．2009．两种NDVI时间序列数据拟合方法比较．农业工程学报，25（11）：183-188．[Wu Wenbin, Yang Peng, Tang Huajun, Zhou Qingbo and Shibasaki Ryosuke. 2009. Comparison of Two Fitting Methods of NDVI Time Series Datasets. Transactions of the CSAE, 25(11):183-188. ]
	Yang G, Shen H, Zhang L, He Z and Li X. 2015. A Moving Weighted Harmonic Analysis Method for Reconstructing High-Quality SPOT VEGETATION NDVI Time-Series Data. IEEE Transactions on Geoscience & Remote Sensing, 53(11): 6008-6021.
	杨尚武，张勃．2014．基于SPOT NDVI的甘肃河东植被覆盖变化及其对气候因子的响应．生态学杂志，33（2）：455-461．[ Yang Shangwu and Zhang Bo. 2014. Vegetation Cover Change and Its Response to Climatic Factors Using SPOT NDVI in Hedong of Gansu Province. Chinese Journal of Ecology, 33(2): 455-461. ]
	Zeng Z Z, Piao S L, Li L Z X, Wang T, Ciais P, Lian X, Yang Y, Mao J, Shi X and Myneni R B. 2018. Impact of Earth Greening on the Terrestrial Water Cycle. Journal of Climate, 31(7): 2633-2650.
	Zhang Q, Kong D D, Shi P J, Singh V P and Peng S. 2018. Vegetation Phenology on the Qinghai-Tibetan Plateau and Its Response to Climate Change (1982-2013). Agricultural & Forest Meteorology, 248: 408-417.
	张景华，封志明，姜鲁光，杨艳照．2015．澜沧江流域植被NDVI与气候因子的相关性分析．自然资源学报，30（9）：1425-1435．[Zhang Jinghua, Feng Zhiming, Jiang Luguang and Yang Yanzhao. 2015. Analysis of the Correlation between NDVI and Climate Factors in the Lancang River Basin. Journal of Natural Resources, 30(9): 1425-1435. ]
	张清雨，吴绍洪，赵东升，戴尔阜．2013．内蒙古草地生长季植被变化对气候因子的响应．自然资源学报，28（5）：754-764．[Zhang Qingyu, Wu Shaohong, Zhao Dongsheng and Dai Erfu. 2013. Responses of Growing Season Vegetation Changes to Climatic Factors in Inner Mongolia Grassland. Journal of Natural Resources, 28(5): 754-764. ]
	周增光，唐娉．2013．基于质量权重的Savitzky-Golay时间序列滤波方法．遥感技术与应用，28（2）：232-239．[Zhou Zengguang and Tang Pin. VI-Quality-Based Savitzy-Golay Method for Filtering Time Series Data. Remote Sensing Technology and Application, 28(2): 232-239. ]

像元值	数据说明	质量说明	权重赋值
0	理想可用数据	好	1
1	临界的数据	较好	0.7
2	雪或者冰覆盖	差	0.5
3	云覆盖	极差	0.1

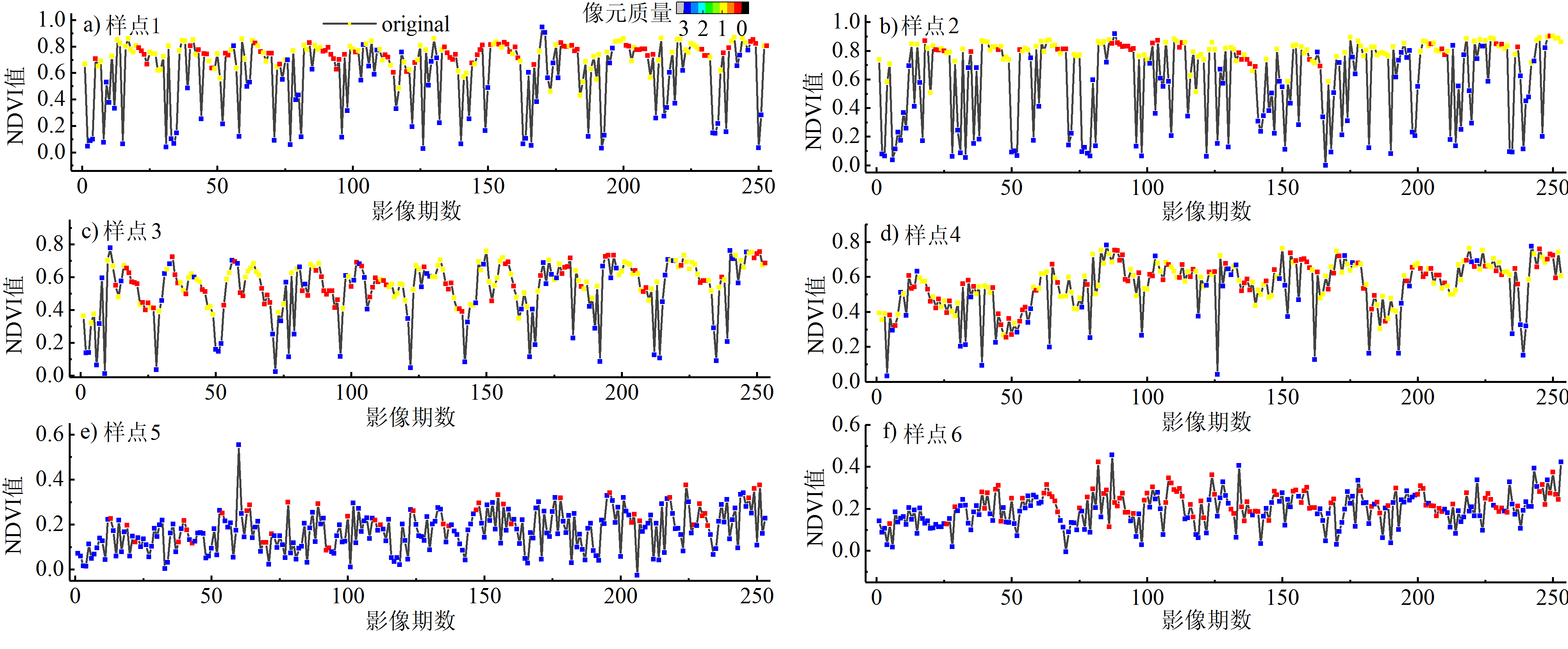

样点号	地类	位置	地形	NDVI质量	NDVI值
