基于卫星遥感和POI数据的人口空间化研究——以广州市为例

doi:10.13284/j.cnki.rddl.003179

热带地理 ›› 2020, Vol. 40 ›› Issue (1): 101-109.doi: 10.13284/j.cnki.rddl.003179

基于卫星遥感和POI数据的人口空间化研究——以广州市为例

赵鑫¹, 宋英强^1a, 刘轶伦^1a, 陈飞香^1a, 胡月明^1,^2,³()

^1. a. 华南农业大学资源环境学院；b. 国土资源部建设用地再开发重点实验室；c. 广东省土地利用与整治重点实验室；d. 广东省土地信息工程技术研究中心，广州 510642
^2. 青海大学农牧学院，西宁 810016
^3. 电子科技大学资源与环境学院，成都 610054

收稿日期:2019-04-15 修回日期:2019-09-04 出版日期:2020-01-10 发布日期:2020-02-24
通讯作者: 胡月明 E-mail:yueminghugis@163.com
作者简介:赵鑫（1994—）,女,硕士研究生,主要研究方向为土地利用与地理信息系统,（E-mail）582625232@qq.com。
基金资助:
国家重点研发计划(2016YFC0501801);广州市科技计划项目(201807010048);国家自然科学基金(41601404)

Population Spatialization Based on Satellite Remote Sensing and POI Data: Guangzhou as an Example

Zhao xin¹, Song Yingqiang^1a, Liu Yilun^1a, Chen Feixiang^1a, Hu Yueming^1,^2,³()

^1. a. College of natural resources and environment, South China Agricultural University; b. Key Laboratory of Construction Land improvement, Ministry of Land and Resources; c. Guangdong Province Key Laboratory for Land Use and Consolidation; d. Guangdong Province EngineeringResearch Center for Land Information Technology, Guangzhou 510642, China
^2. College of Agriculture and Animal Husbandry, Qinghai University, Xining 810016, China
^3. College of natural resources and environment, University of Electronic Science and Technology of China, Chengdu 610054, China

Received:2019-04-15 Revised:2019-09-04 Online:2020-01-10 Published:2020-02-24
Contact: Hu Yueming E-mail:yueminghugis@163.com

摘要/Abstract

摘要：

以广州市为例,基于NPP/VIIRS夜间灯光、土地利用、POI（Points of Interest）等自然地理和社会经济因素,构建了人口空间化指标体系,采用主成分赋权法确定人口分布权重,利用GIS技术对人口统计数据进行了空间化处理。结果显示：综合考虑了自然地理和社会经济因素的人口空间化结果与真实的人口空间格局相吻合,空间分辨率为30 m,且相对误差绝对值＜25%的乡镇有62个,所占比例为36.47%;而不加POI数据得到的人口空间化结果,相对绝对值＜25%的乡镇有33个,所占比例约为20%,精度明显降低。结果表明：1）综合考虑NPP/VIIRS夜间灯光、土地利用、POI等自然地理和社会经济因素,有助于实现精度较高的人口空间化结果;2）将能够反映微观细节信息的POI数据引入人口空间化研究,扩展了人口空间化的数据源,并且可以提高人口空间化结果的精度。

关键词: NPP/VIIRS, DMSP/OLS, 人口空间化, POI, 广州

Abstract:

The fine-scale spatial distribution of a population can provide assistance for decision-making regarding research, such as urban planning, economic decision-making, disaster prevention, and crime management, which is of considerable importance to the study of human activities. Considering Guangzhou as an example, this study constructed a population spatialization index system based on NPP/VIIRS night light intensity, land use, points of interest (POI), and other natural geographical and socio-economic factors. Further, the principal component weighting method was used to calculate the weight of the population distribution. According to which, geographic information system (GIS) technology was used to assign census data to each pixel. Finally, an accuracy test was performed by comparing the result of the population spatialization with the real population of townships of Guangzhou. The result of the population spatialization, considering natural geography and socio-economic factors, is consistent with the real population spatial pattern, and the spatial resolution is 30 m. The accuracy test result showed that the absolute relative error of 62 townships was less than 25%, which accounted for 36.47% of all townships in Guangzhou, indicating that the result of the population spatialization is highly accurate. The population spatialization result without POI data showed that the absolute relative error of 33 townships was less than 25%, which accounted for 20% of all townships in Guangzhou, showing that the accuracy of population of the spatialization result was significantly reduced. Compared with other studies on population spatialization, this study included the following characteristics: 1) a comprehensive consideration of NPP/VIIRS night light intensity, land use, POI, and other natural geography and socio-economic factors, which are helpful for achieving high-precision results of population spatialization and 2) POI data that can reflect surface features, such as urban land use types and population activity preferences. Additionally, POI data are easy to acquire, rich in data volume, have a high positioning accuracy, and have a better resolution regarding micro details. Introducing POI data into population spatialization research can expand the data source of population spatialization and improve the accuracy of population spatialization results.

Key words: NPP/VIIRS, DMSP/OLS, Spatial distribution of population, POI, Principal Component Analysis, Guangzhou

中图分类号:

P208

赵鑫, 宋英强, 刘轶伦, 陈飞香, 胡月明. 基于卫星遥感和POI数据的人口空间化研究——以广州市为例[J]. 热带地理, 2020, 40(1): 101-109.

Zhao xin, Song Yingqiang, Liu Yilun, Chen Feixiang, Hu Yueming. Population Spatialization Based on Satellite Remote Sensing and POI Data: Guangzhou as an Example[J]. Tropical Geography, 2020, 40(1): 101-109.

图/表 7

表1

图 1

表2

图2

图3

图4

图5

参考文献 42

[1]	Bakillah M, Liang Mobasheri, Arsanjani J and Zipf .2014. Fine-Resolution Population Mapping Using OpenStreetMap Points-of-Interest.International Journal of Geographical Information, 28(9): 1940-1963.
[2]	Chen Yimin, Liu Xiaoping, Li Xia, Liu Yilun and Xu Xiaocong.2016. Mapping the Fine-Scale Spatial Pattern of Housing Rent in the Metropolitan Area by Using Online Rental Listings and Ensemble Learning.Applied Geography, 75: 200-212.
[3]	曹丽琴,李平湘,张良培.2009.基于DMSP/OLS夜间灯光数据的城市人口估算——以湖北省各县市为例.遥感信息,(1):83-87.
	[Cao Liqin, Li Pingxiang and Zhang Liangpei.2009. Urban Population Estimation Based on the DMSP/OLS Night-time Satellite Data: A Case of Hubei Province.Remote Sensing Information, (1): 83-87. ]
[4]	陈晴,侯西勇.2015.集成土地利用数据和夜间灯光数据优化人口空间化模型.地球信息科学学报,17(1):1370-1377.
	[Chen Qing and Hou Xiyong.2015. An Improved Population Spatialization Model by Combining Land Use Data and DMSP/OLS Data.Journal of Geo-Information Science, 17(1): 1370-1377. ]
[5]	程林,王法辉,修春亮.2014.基于GIS的长春市中心城区大型超市服务区分析.经济地理,34(4):54-58.
	[Cheng Lin, Wang Fahui and Xiu Chunlinag.2014. Trade Area of Supermarket in Changchun Centeral Urban Area Based on GIS.Economic Geography, 34(4): 54-58. ]
[6]	淳锦,张新长,黄健锋,张鹏程.2018.基于POI数据的人口分布格网化方法研究.地理与地理信息科学,34(4):83-89.
	[Chun Jin, Zhang Xinchang, Huang Jianfeng and Zhang Pengcheng.2018. A Gridding Method of Redistributing Population Based on POIs.Geography and Geo-Information Science, 34(4): 83-89. ]
[7]	陈浩钿,贾景智. 2015. 广州统计年鉴. 北京:中国统计出版社.
	[Chen Haodian, Jia Jingzhi.2015. Guangzhou Statistical Yearbook.Beijing: China Statistics Press. ]
[8]	Deville P, Linard C and Martin S.2014. Dynamic Population Mapping Using Mobile Phone Data.Proceedings of the National Academy of Sciences, 111(45): 15888-15893.
[9]	Elvidge C D, Baugh K E, Dietz J B, Bland T, Sutton P C and Kroehl H W.1999. Radiance Calibration of DMSP-OLS Low-Light Imaging Data of Human Settlements.Remote Sensing of Environment, 68(1): 77-88.
[10]	郭良,张晓蕾,刘荣华,刘业森,刘启.2017.全国山洪灾害调查评价成果及规律初探.地球信息科学学报,19(12):1547-1556.
	[Guo Liang, Zhang Xiaolei, Liu Ronghua, Liu Yesen and Liu Qi.2017. Achievements and Preliminary Analysis on China National Flash Flood Disasters Investigation and Evaluation.Journal of Geo-Information Science, 19(12): 1547-1556. ]
[11]	洪东升. 2015.基于定位数据的人口分布特征研究.北京:中国地质大学.
	[Hong Dongsheng.2015. Research on Characteristics of Population Distribution Based on Positioning Data. Beijing: China University of Geosciences. ]
[12]	胡云锋,赵冠华,张千力.2018.基于夜间灯光与LUC数据的川渝地区人口空间化研究.地球信息科学学报,20(1):68-78.
	[Hu Yunfeng, Zhao Guanhua and Zhang Qianli.2018. Spatial Distribution of Population Data Based on Nighttime Light and LUC Data in the SichuanChongqing Region.Journal of Geo-Information Science, 20(1): 68-78. ]
[13]	金君,李成名,印洁,林宗坚.2003.人口数据空间分布化模型研究.测绘学报,32(3):278-282.
	[Jin Jun, Li Chengming, Yin Jie and Lin Zongjian.2003. Investigation on the Model for Spatial Distribution of Population Data.Acta Geodaetica Et Cartographic Sinica, 32(3): 278-282. ]
[14]	Kraus S P, Senger L W and Ryerson J M.1974. Estimating Population from Photographically Determined Residential Land Use Types.Remote Sensing of Environment, 3(1): 35-42.
[15]	康停军,张新长,赵元,王海鹰,张维.2012.基于GIS和多智能体的城市人口分布模拟.中山大学学报(自然科学版),51(3):135-142.
	[Kang Tingjun, Zhang Xinchang, Zhao Yuan, Wang Haiying and Zhang Wei.2012. Simulation for Urban Population Distribution Based on GIS and Multi-Agent.Acta Scientiarum Naturalium Universitatis Sunyatseni, 51(3): 135-142. ]
[16]	Linard C, Gilbert M and Tatem A J.2011. Assessing the Use of Global Land Cover Data for Guiding Large Area Population Distribution Modelling.GeoJournal, 76(5): 525-538.
[17]	Liu Y, Zhu A, Wang J, Li W, Hu Y and Hu G.2019. Land-use Decision Support in Brownfield Redevelopment for Urban Renewal Based on Crowdsourced Data and a Presence-and-Background Learning (PBL) Method.Land Use Policy, 88: 104188.
[18]	廖顺宝,孙九林.2003.基于GIS的青藏高原人口统计数据空间.地理学报,58(1):25-33.
	[Liao Shunbao and Sun Jiulin.2003. GIS. Based Spatialization of Population Census Data in Qinghai-Tibet Plateau. Acta Geographica Sinca, 58(1): 25-33. ]
[19]	廖顺宝,李泽辉.2004.四川省人口分布与土地利用的关系及人口数据空间化试验.长江流域资源与环境,13(6):557-561.
	[Liao Shunbao and Li Zehui.2004. Relationship Between Population Distribution and Land Use and Spatialization of Population Census Data.Resources & Environment in the Yangtze Basin, 13(6): 557-561. ]
[20]	廖一兰,王劲峰,孟斌,李新虎.2007.人口统计数据空间化的一种方法.地理学报,62(10):1110-1119.
	[Liao Yilan, Wang Jinfeng, Meng Bin and Li Xinhu.2007. A Method of Spatialization of Statistical Population. Acta Geographica Sinica, 62(10): 1110-1119. ]
[21]	林丽洁,林广发,颜小霞,陈爱玲,杨志海.2010.人口统计数据空间化模型综述.亚热带资源与环境学报,5(4):10-16.
	[Lin Lijie, Lin Guangfa, Yan Xiaoxia, Chen Ailing and Yang Zhihai.2010. Spatialization Models of Census Data: A Review.Journal of Subtropical Resources & Environment, 5(4): 10-16. ]
[22]	刘纪远,岳天祥,王英安,邱冬生.2003.中国人口密度数字模拟.地理学报,58(1):17-24.
	[Liu Jiyuan, Yue Tianxiang, Wang Yingan and Qiu Dongsheng.2003. Digital Simulation of Population Density in China.Acta Geographica Sinca, 58(1): 17-24. ]
[23]	刘燕华,王强.2001.中国适宜人口分布研究——从人口的相对分布看各省区可持续性.中国人口·资源与环境,11(1):35-38.
	[Liu Yanhua and Wang Qiang.2001. Optimized Population Distribution in China: On Provincial Sustainable Development.China Population Resources & Environment, 11(1): 35-38. ]
[24]	刘轶伦,陈逸敏,刘颖,王景丽,张晖.2019. 基于互联网数据的城市社区租金评估及空间格局制图——以深圳市为例.热带地理,39(2):188-195.
	[Liu Yilun, Chen Yimin, Liu Ying, Wang Jingli and Zhang Hui.2019. Unit Rent Appraisal in Community-Scale and Spatial Pattern Mapping in a Metropolitan Area Using Online Real Estate Data: A Case Study of Shenzhen.Tropical Geography, 39(2): 188-195. ]
[25]	吕安民,李成名,林宗坚,金逸民.2002.人口统计数据的空间分布化研究.武汉大学学报(信息科学版),27(3):301-305.
	[Lv Anmin, Li Chengming, Lin Zongjian and Jin Yimin.2002. Spatial Distribution of Statistical Population Data.Geomatics and Information Science of Wuhan University, 27(3): 301-305. ]
[26]	马钰琪,朱秀芳,刘宪锋,陆楠.2015.基于夜间灯光数据和多地理因子数据的人口空间化方法——以辽宁省为例.北京师范大学学报(自然科学版),51(S1):57-61.
	[Ma Yuqi, Zhu Xiufeng, Liu Xianfeng and Lu Nan.2015. A Population Spatialization Method Based on DMSP/ OLS Night-Time Light Data and Weighted Multi-Geographic Factors: the Example of Liaoning Province.Journal of Beijing Normal University (Natural Science), 51(S1): 57-61. ]
[27]	任若恩,王惠文.1997. 多元统计数据分析理论、方法、实例. 北京:国防工业出版社.
	[Ren Ruo’en and Wang Huiwen. 1997Multivariate Statistical Data Analysis Theory, Method and Example. Beijing:National Defense Industry Press. ]
[28]	Stevens F R, Gaughan A E, Linard C and Tatem A J.2015. Disaggregating Census Data for Population Mapping Using Random Forests with Remotely-Sensed and Ancillary Data. PLoS One, 10(2): e0107042.
[29]	Sutton P.1997. Modeling Population Density with Night-Time Satellite Imagery and GIS. Computers.Environment and Urban Systems, 21(3): 227-244.
[30]	Townsend A C and Bruce D A.2010. The Use of Night-Time Lights Satellite Imagery as a Measure of Australia’s Regional Electricity Consumption and Population Distribution.International Journal of Remote Sensing, 31(16): 4459-4480.
[31]	田永中,陈述彭,岳天祥,朱莉芬.2004.基于土地利用的中国人口密度模拟.地理学报,59(2):283-292.
	[Tian Yongzhong, Chen Shupeng, Yue Tianxiang and Zhu Lifen.2004. Simulation of Chinese Population Density Based on Land Use.Acta Geographica Sinca, 59(2): 283-292. ]
[32]	王春菊,汤小华.2004.基于GIS的福建省人口统计数据空间化.地理与地理信息科学,20(4):71-74.
	[Wang Chunju and Tang Xiaohua.2004. GIS-Based Specialization of Population Census Data in Fujian Province.Geography and Geo-Information Science, 20(4): 71-74. ]
[33]	王珂靖,蔡红艳,杨小唤,张远.2015.基于城镇居民用地再分类的人口数据空间化方法研究——以长江中游4省为例.遥感技术与应用,30(5):987-995.
	[Wang Kejing, Cai Hongyan, Yang Xiaohuan and Zhang Yuan.2015. Spatialization Method for Census Data Based on Reclassifying Residential Land Use in Urban Areas: A Case Study in the Middle Reaches of the Yangtze River Watershed.Remote Sensing Technology and Application, 30(5): 987-995. ]
[34]	吴健生,许多,谢舞丹,彭建.2015.基于遥感影像的中尺度人口统计数据空间化——以京津冀地区为例.北京大学学报(自然科学版),51(4):707-717.
	[Wu Jiansheng, Xu Duo, Xie Wudan and Peng Jian.2015. Spatialization of Demographic Data at Medium Scale Based on Remote Sensing Images: Regarding Beijing-Tianjin-Hebei as an Example. Acta Scientiarum Naturalium Universitatis Pekinensis, 51(4): 707-717. ]
[35]	Yang X, Huang Y, Dong P, Jiang D and Liu H.2009. An Updating System for the Gridded Population Database of China Based on Remote Sensing, GIS and Spatial Database Technologies.Sensors, 9(2): 1128-1140.
[36]	Yao Yao, Liu Xiaoping, Li Xia, Zhang Jinbao, Liang Zhaotang, Mai Ke and Zhang Yatao.2017. Mapping Fine-Scale Population Distributions at the Building Level by Integrating Multisource Geospatial Big Data. International Journal of Geographical Information Science, 31(6): 1220-1244.
[37]	闫庆武,卞正富,张萍,王红.2011.基于居民点密度的人口密度空间化.地理与地理信息科学,27(5):95-98.
	[Yan Qingwu, Bian Zhengfu, Zhang Ping and Wang Hong.2011. Census Spatialization Based on Settlements Density. Geography and Geo-Information Science, 27(5): 95-98.
[38]	叶宇,刘高焕,冯险峰.2006.人口数据空间化表达与应用.地球信息科学,8(2):59-65.
	[Ye Yu, Liu Gaohuan and Feng Xianfeng.2006. Presentation of Spatial Distribution of Population and Its Application.Geo-Information Science, 8(2): 59-65. ]
[39]	张耀军,巫锡伟,张敏敏.2016.省级区域人口吸引力对主体功能区规划的影响与启示.人口研究,40(2):12-22.
	[Zhang Yaojun, Wu Xiwei, Zhang Minmin.2017. Regional Population Attraction at Province Level: Impacts on and Implications for the Main Functional Zones Planning.Population Research, 40(2): 12-22. ]
[40]	赵利利,孟芬,马才学.2016.基于多源遥感数据的武汉市人口空间分布格局演化.地域研究与开发,35(3):165-169.
	[Zhao Lili, Meng Fen and Ma Caixue.2016. The Analysis on Spatial Distribution and Evolution of the Population in Wuhan City Based on Multi-source Remote Sensing Data.Areal Research and Development, 35(3): 165-169. ]
[41]	赵一单. 2017.城市人口与土地管理的精细化问题:兼论北京市城市管理法治创新.学术交流,(11):86-91.
	[Zhao Yidan.2017. Refinement of Management of Urban Population and Land: Concurrently on the Innovation of Management Legalization in Beijing.Academic Exchange, (11): 86-91. ]
[42]	卓莉,陈晋,史培军,辜智慧.2005.基于夜间灯光数据的中国人口密度模拟.地理学报,60(2):266-276.
	[Zhuo Li, Chen Jin, Shi Peijun and Gu Zhihui.2005. Modeling Population Density of China in 1998 Based on DMSP/OLS Nighttime Light Image.Acta Geographica Sinca, 60(2): 266-276. ]

数据名称	数据来源	属性
2015年土地利用数据（包括河流、道路）	遥感解译Landsat image（2015-10-08）	30 m×30 m栅格
2015年POI	网络爬虫	矢量点数据
2015年DEM数据	地理空间数据云http://www.gscloud.cn/	30 m×30 m栅格
2015年NPP/VIIRS	https://ngdc.noaa.gov	500 m×500 m栅格
2015年DMSP/OLS	https://ngdc.noaa.gov	1 000 m×1 000 m栅格
2015年人口户籍统计数据	各区统计年鉴http://cyfd.cnki.com.cn/N2016010323.htm	区县级、乡镇（街道）级
2015年广州市行政区划	广州市行政图数字化	矢量面数据

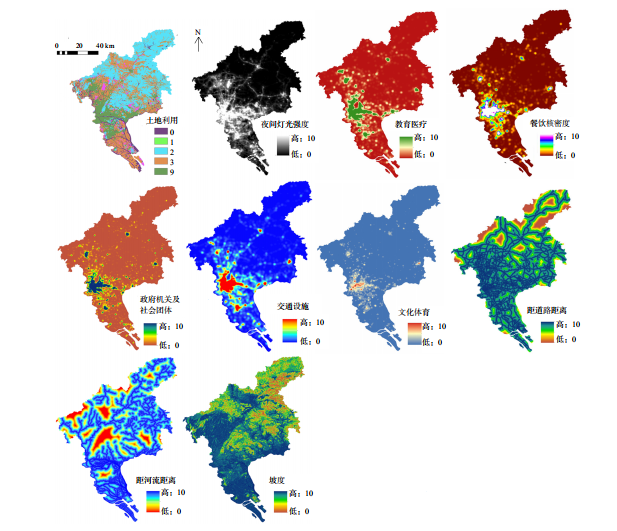

A目标层	B准则层	C指标层
A人口空间化评价指标体系	B1社会经济	C1土地利用类型
		C2夜间灯光强度
		C3教育医疗核密度
		C4餐饮核密度
		C5政府机关及社会团体核密度
		C6交通设施核密度
		C7文化体育核密度
	B2自然地理	C8距最近道路距离
		C9距最近河流距离
		C10坡度
