南海海上搜救困难性评价

doi:10.13284/j.cnki.rddl.003512

Abstract

Abstract:

To ensure maritime search and rescue safety, this study combined a geographic information system and a fuzzy analytic hierarchy process to map and evaluate the difficulties of maritime search and rescue in the South China Sea. To construct a maritime search and rescue difficulty index system, nine factors related to the natural environment and human power that may influence maritime search and rescue were selected, and difficulty indices were calculated according to the corresponding calculation method. The fuzzy analytic hierarchy process was then used to determine the weight of each index, and the linear weighting method was used to obtain the maritime search and rescue difficulty value of the South China Sea. The difficulty values were divided into 10 levels and the spatial distribution characteristics were analyzed. The results show that: 1) under the influence of the natural environment, the difficulty of search and rescue in the sea area of the South China Sea had the characteristics of a V-shaped distribution, and the difficulty level gradually decreased from northeast to southwest. 2) Under the influence of humanistic search and rescue forces, the overall difficulty of search and rescue in the study area was the "NE-SW belt" type. The area with high difficulty levels was mainly located on the line connecting the northeast to the southwest of the study area, and the difficulty decreased in an irregular circle on both sides of the connecting line. 3) Considering these two factors, the difficulty of search and rescue was relatively high around some islands in the South China Sea, because of the influence of severe weather events, such as typhoons, and their large distance from the search and rescue base. The difficulty values in the far seas have "NE-SW decreasing" spatial distribution pattern, with the highest values in the areas extending from the northeast to the southwest of the study area, then decreasing to the northwest and southeast. According to statistics, approximately 21.1% of the sea areas in the South China Sea have search and rescue difficulties greater than level 6, and the construction of search and rescue forces should be optimized accordingly.

Key words: South China Sea, maritime search and rescue, difficulty assessment, fuzzy analytic hierarchy process, natural environment, humanistic search and rescue force

CLC Number:

U676.83

Xiaoyi Zuo, Liang Cheng, Sensen Chu, Jie Wu, Xuedong Zhang. Difficulty Assessment of Maritime Search and Rescue in the South China Sea[J].Tropical Geography, 2022, 42(7): 1138-1147.

Figures/Tables 6

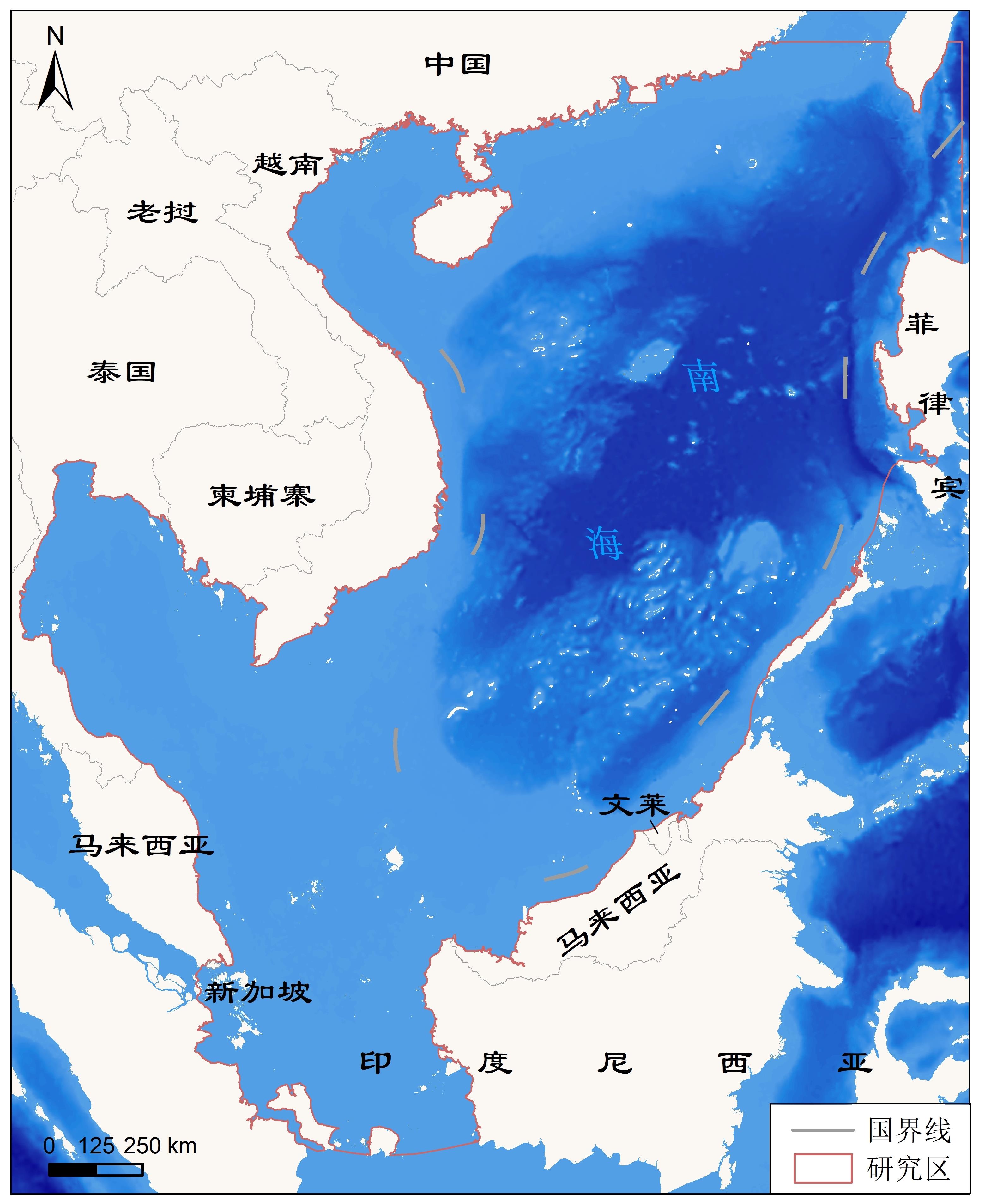

Fig.1

Table 1

Calculation of difficulty evaluation index for maritime search and rescue

困难性指标	指标描述	类型	计算方法
水深	对搜救作业造成困难的水深值/m	逆向	$D' = 20 D ≥ 0 ⋃ D < - 20 - D - 20 ≤ D < 0$ 式中：D $'$ 为水深指标值； $D$ 为水深值。
大风频次	一年中发生大风的天数/d	正向	$w i k' = 1 w i k > 11.7 0 w i k ≤ 11.7$ $T w k = ∑ i = 1 n w i k', i = 1,2, …, n$ 式中： $w i k 、 w i k'$ 分别为第 $i$ 天栅格单元 $k$ 的风速值和对应为大风的二值变量； $T w k$ 为栅格单元 $k$ 的大风频次指标值； $n$ 为一年的总天数。
大浪频次	一年中发生大浪的天数/d	正向	$g i k' = 1 g i k > 4 0 g i k ≤ 4$ $T g k = ∑ i = 1 n g i k', i = 1,2, …, n$ 式中： $g i k 、 g i k'$ 分别为第 $i$ 天栅格单元 $k$ 的浪高值和对应为大浪的二值变量； $T g k$ 为栅格单元 $k$ 的大浪频次指标值； $n$ 为一年的总天数。
雾	海雾的面积占比/%	正向	$F k = ∑ i = 1 n f i k n, i = 1,2, …, n$ 式中： $F k$ 为栅格单元 $k$ 的海雾指标值； $f i k$ 为第 $i$ 天栅格单元 $k$ 中低云面积的百分比； $n$ 为一年的总天数。
降水量	日降水量值/mm	正向	$P k = ∑ i = 1 n p i k n, i = 1,2, … n$ 式中： $P k$ 为栅格单元 $k$ 的降水量指标值； $p i k$ 为第 $i$ 天栅格单元 $k$ 的日降水量值（mm）； $n$ 为一年的总天数。
台风频次	发生台风的次数/次	正向	$t i k = 1 当台风 i 经过栅格单元 k 0 当台风 i 不经过栅格单元 k$ $T t k = ∑ i = 1 n t i k, i = 1,2, …, n$ 式中： $t i k$ 为判断台风 $i$ 是否经过栅格单元 $k$ 的二值变量； $T t k$ 为栅格单元 $k$ 的台风频次指标值； $n$ 为台风总个数。
距离海岸线、岛礁	到海岸线、岛礁的距离/m	正向	使用欧氏距离计算栅格单元到海岸线、岛礁或航线或港口、基地的最短距离。
距离航线	到主要航线的距离/m	正向
距离港口、基地	到主要港口、搜救基地的距离/m	正向

Table 1

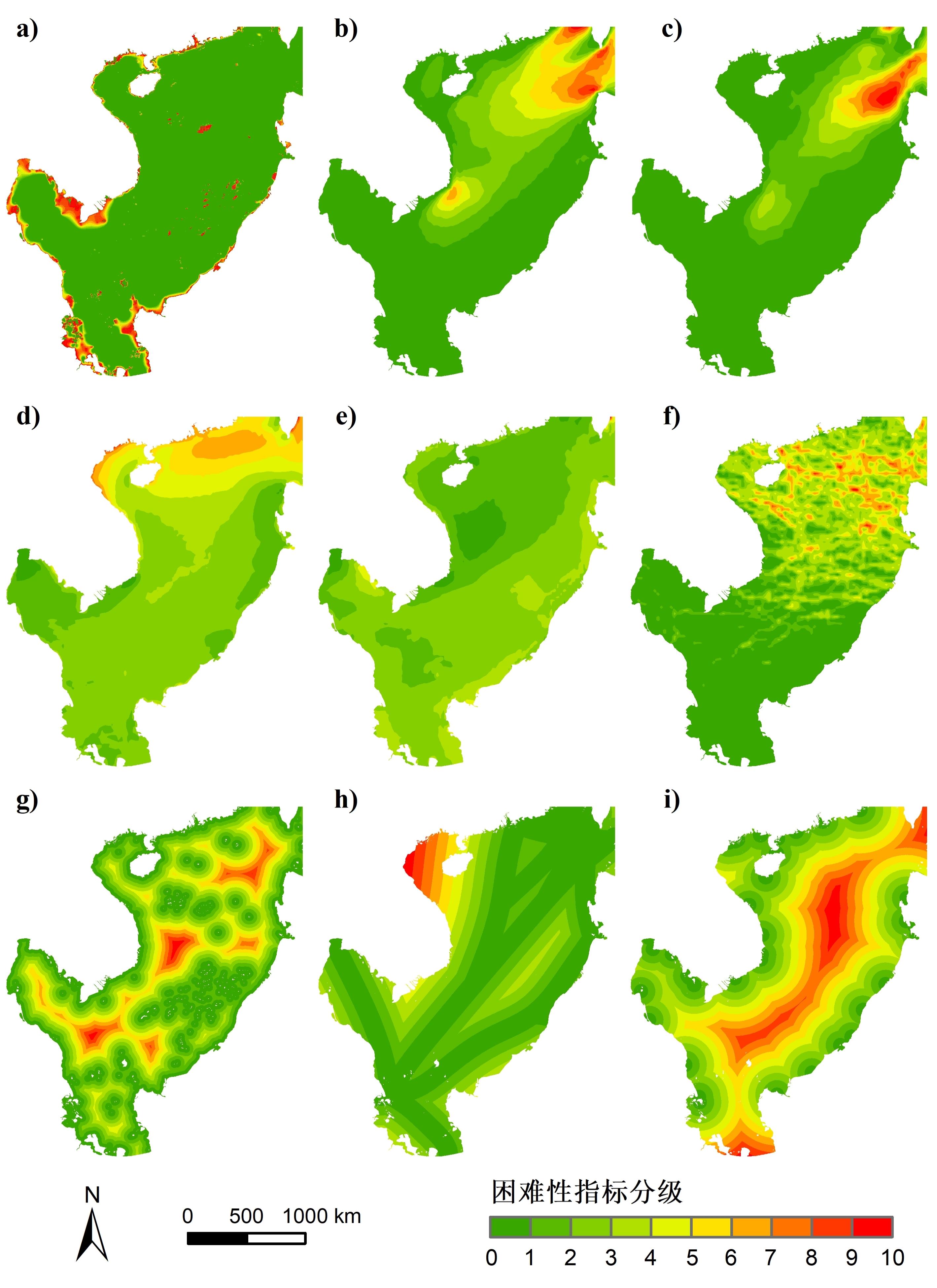

Fig.2

Table 2

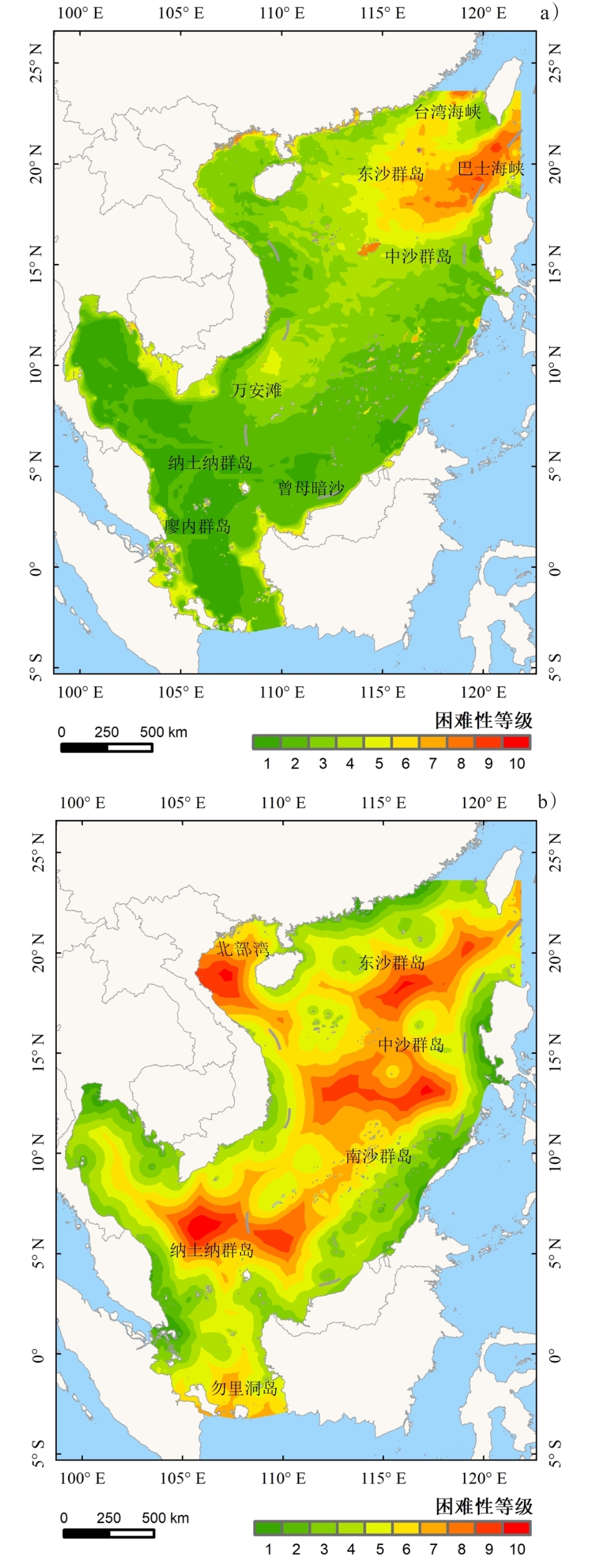

Fig.3

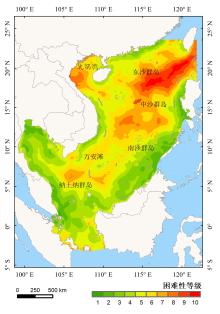

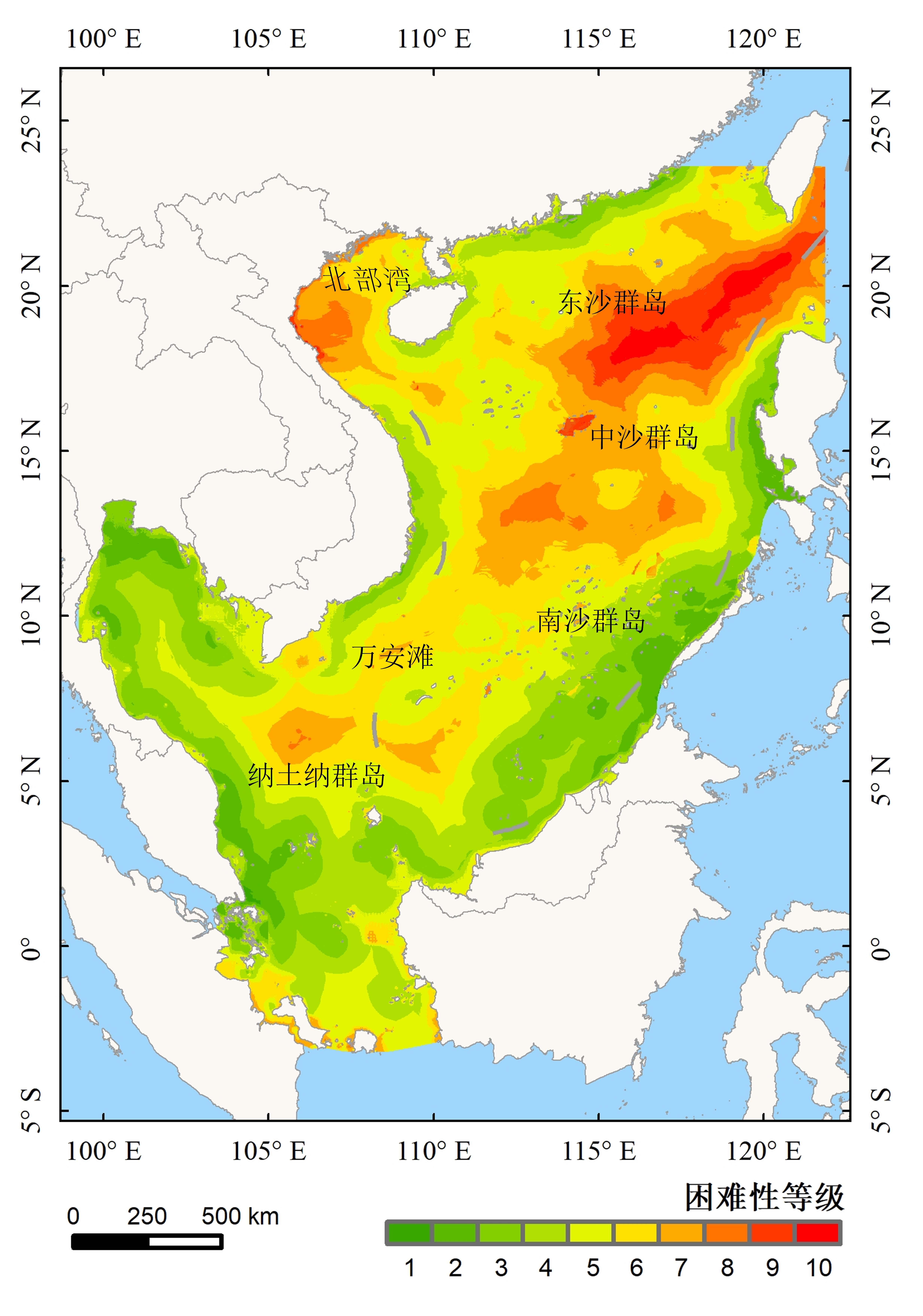

Fig.4

References 0

	Ai Yunfei, Lu Jing and Zhang Lili. 2015. The Optimization Model for the Location of Maritime Emergency Supplies Reserve Bases and the Configuration of Salvage Vessels. Transportation Research Part E-Logistics and Transportation Review, 83: 170-188.
	Baksh Al-Amin, Abbassi Rouzbeh, Garaniya Vikram and Khan Faisal. 2018. Marine Transportation Risk Assessment Using Bayesian Network: Application to Arctic Waters. Ocean Engineering, 159: 422-436.
	Briggs Michael J, Borgman Leon E and Bratteland Eivind. 2003. Probability Assessment for Deep-Draft Navigation Channel Design. Coastal Engineering, 48(1): 29-50.
	Brushett Ben A, Allen Arthur A, King Brian A and Lemckert Charles J. 2017. Application of Leeway Drift Data to Predict the Drift of Panga Skiffs: Case Study of Maritime Search and Rescue in the Tropical Pacific. Applied Ocean Research, 67: 109-124.
	Calabrese Armando, Costa Roberta, Levialdi Nathan and Menichini Tamara. 2016. A Fuzzy Analytic Hierarchy Process Method to Support Materiality Assessment in Sustainability Reporting. Journal of Cleaner Production, 121: 248-264.
	Chang Dayong. 1996. Applications of the Extent Analysis Method on Fuzzy AHP. European Journal of Operational Research, 95(3): 649-655.
	Cheng Liang, Yan Zhaojin, Xiao Yijia, Chen Yanming, Zhang Fangli and Li Manchun. 2019. Using Big Data to Track Marine Oil Transportation along the 21st-Century Maritime Silk Road. Science China Technological Sciences, 62(4): 677-686.
	Ho Chao Chung. 2011. Optimal Evaluation of Infectious Medical Waste Disposal Companies Using the Fuzzy Analytic Hierarchy Process. Waste Management, 31(7): 1553-1559.
	Hoque Muhammad Al-Amin, Phinn Stuart, Roelfsema Chris and Childs Iraphne. 2018. Assessing Tropical Cyclone Risks Using Geospatial Techniques. Applied Geography, 98: 22-33.
	Huang Juan-Chen, Nieh Chung-Yuan and Kuo Hsin-Chuan. 2019. Risk Assessment of Ships Maneuvering in an Approaching Channel Based on AIS Data. Ocean Engineering, 173: 399-414.
	Jiang Dan, Hao Guozhu, Huang Liwen and Zhang Dan. 2016. Use of Cusp Catastrophe for Risk Analysis of Navigational Environment: A Case Study of Three Gorges Reservoir Area. PLoS One, 11(7): e0158482.
	姜景春. 2016. 基于北斗和ZigBee的海上搜救系统研究. 科技视界，（11）：133-134.
	Jiang Jingchun. 2016. Maritime Search and Rescue System Research Based on Beidou and ZigBee. Science & Technology Vision, (11): 133-134.
	Jiang Meizhi, Lu Jing, Yang Zaili and Li Jing. 2020. Risk Analysis of Maritime Accidents Along the Main Route of the Maritime Silk Road: A Bayesian Network Approach. Maritime Policy & Management, 47(6): 815-832.
	Knapp Sabine and Heij Christiaan. 2017. Evaluation of Total Risk Exposure and Insurance Premiums in the Maritime Industry. Transportation Research Part D-Transport Environment, 54: 321-334.
	Li Sipan, Gong Qunxi and Yang Shaolei. 2019. A Sustainable, Regional Agricultural Development Measurement System Based on Dissipative Structure Theory and the Entropy Weight Method: A Case Study in Chengdu, China. Sustainability, 11(19): 5313.
	李想，肖桂荣，蔡圣准. 2019. 结合网络文本的模糊层次分析法评价水环境敏感性. 地球信息科学学报，21（12）：1832-1844.
	Li Xiang, Xiao Guirong and Cai Shengzhun. 2019. Evaluation of Water Environmental Sensitivity Based on Fuzzy Analytic Hierarchy Process Combined with Web Text. Journal of Geo-Information Science, 21(12): 1832-1844.
	刘海燕，庞小平. 2015. 利用GIS和模糊层次分析法的南极考察站选址研究. 武汉大学学报（信息科学版），40（2）：249-252，257.
	Liu Haiyan and Pang Xiaoping. 2015. Selection of Antarctic Research Stations Based on GIS and Fuzzy AHP. Geomatics and Information Science of Wuhan University, 40(2): 249-252, 257.
	刘同木，刘在科，余建星，刘愉强，周保成，林冠英，曹永港. 2018. 船舶漂移运动轨迹模型及其实船试验验证. 船舶力学，22（11）：1315-1322.
	Liu Tongmu, Liu Zaike, Yu Jianxing, Liu Yuqiang, Zhou Baocheng, Lin Guanying and Cao Yonggang. 2018. Drift Trajectory Model of the Ship and Its Full Scale Experiment Validation. Journal of Ship Mechanics, 22(11): 1315-1322.
	吕靖，王爽. 2014. 我国海上运输关键节点安全评价研究. 交通运输系统工程与信息，15（1）：30-36.
	Lyu Jing and Wang Shuang. 2014. Safety Evaluation of China's Maritime Transport Key Nodes. Journal of Transportation Systems Engineering and Information Technology, 15(1): 30-36.
	Nguyen Kim-Anh, Liou Yuei-An and Terry James P. 2019. Vulnerability of Vietnam to Typhoons: A Spatial Assessment Based on Hazards, Exposure and Adaptive Capacity. Science of the Total Environment, 682: 31-46.
	Pelot Ronald, Akbari Amin and Li Li. 2015. Vessel Location Modeling for Maritime Search and Rescue. In: Eiselt Horst A and Marianov Vladimir. Switzerland: Applications of Location Analysis. Springer, 369-402.
	瞿美仙，吴浩，昝军，刘毅. 2019. 基于模糊层次分析法的湖北某尾矿库风险评价. 中国矿业，28（S2）：148-153.
	Qu Meixian, Wu Hao, Zan Jun and Liu Yi. 2019. Risk Assessment of a Tailings Reservoir in Hubei Based on Fuzzy Analytic Hierarchy Process. China Mining Magazine, 28(S2): 148-153.
	Rosenberg David. 2009. The Political Economy of Piracy in the South China Sea. Naval War College Review, 62(3): 43-58.
	Sathiyamoorthy V, Arya R and Kishtawal C M. 2016. Radiative Characteristics of Fog over the Indo-Gangetic Plains During Northern Winter. Climate Dynamics, 47(5/6): 1793-1806.
	Siljander Mika, Venäläinen Emilia, Goerlandt Floris and Pellikka Petri. 2015. Gis-Based Cost Distance Modelling to Support Strategic Maritime Search and Rescue Planning: A Feasibility Study. Applied Geography, 57: 54-70.
	谭人华，王艳慧，关鸿亮. 2019. 基于GIS与模糊层次分析法的景观视觉资源综合评价. 地球信息科学学报，21（5）：663-674.
	Tan Renhua, Wang Yanhui and Guan Hongliang. 2019. Comprehensive Evaluation of Landscape Visual Resources Based on GIS and FAHP. Journal of Geo-Information Science, 21(5): 663-674.
	Tsou Ming-Cheng. 2010. Integration of a Geographic Information System and Evolutionary Computation for Automatic Routing in Coastal Navigation. The Journal of Navigation, 63(2): 323-341.
	Wang Jiasheng, Li Manchun, Liu Yongxue, Zhang Hexia, Zou Wei and Cheng Liang. 2014. Safety Assessment of Shipping Routes in the South China Sea Based on the Fuzzy Analytic Hierarchy Process. Safety Science, 62: 46-57.
	杨张瑜，田淑芳，魏萌，董航，高永志，丁宇雪. 2019. 基于模糊层次分析法的尾矿库环境风险评价研究. 测绘与空间地理信息，42（9）：16-21.
	Yang Zhangyu, Tian Shufang, Wei Meng, Dong Hang, Gao Yongzhi and Ding Yuxue. 2019. Research on Environmental Risk Assessment of Tailings Reservoir Based on Fuzzy Analytic Hierarchy Process. Geomatics & Spatial Information Technology, 42(9): 16-21.
	衣麟卓. 2020. 海上搜救最优路线规划模型设计与仿真. 舰船科学技术，42（8A）：34-36.
	Yi Linzhuo. 2020. Design and Simulation of Optimal Route Planning Model for Maritime Search and Rescue. Ship Science and Technology, 42(8A): 34-36.
	Zhou Xiao, Cheng Liang and Li Manchun. 2020. Assessing and Mapping Maritime Transportation Risk Based on Spatial Fuzzy Multi-Criteria Decision Making: A Case Study in the South China Sea. Ocean Engineering, 208: 107403.
	Zhou Xiao, Cheng Liang, Zhang Fangli, Yan Zhaojin, Ruan Xiaoguang, Min Kaifu and Li Manchun. 2019. Integrating Island Spatial Information and Integer Optimization for Locating Maritime Search and Rescue Bases: A Case Study in the South China Sea. ISPRS International Journal of Geo-Information, 8(2): 88.
	朱武斌，周立，张一，李进军，祁晶. 2019. 基于无人机海上协同搜救关键技术研究. 现代信息科技，3（13）：1-3.
	Zhu Wubin, Zhou Li, Zhang Yi, Li Jinjun and Qi Jing. 2019. Research on Key Technologies of Marine Collaborative Search and Rescue Based on UAV. Modern Information Technology, 3(13): 1-3.

困难性级别	搜救困难性
困难性级别	自然环境下	人文搜救力量下	综合
1	13.8	1.5	0.1
2	30.4	5.2	4.3
3	20.4	10.3	14.2
4	16	16.7	17.7
5	8.3	19.4	22.3
6	5.8	19.1	20.3
7	3.3	14.2	12.5
8	1.8	8.7	4.6
9	0.1	4.3	3
10	0.1	0.6	1
