Tropical Geography ›› 2023, Vol. 43 ›› Issue (1): 31-42.doi: 10.13284/j.cnki.rddl.003610
Previous Articles Next Articles
Yunlei Chang1,2,3(), Jingjuan Liao1,2(
), Li Zhang1,2
Received:
2022-07-25
Revised:
2022-10-19
Online:
2023-01-05
Published:
2023-02-03
Contact:
Jingjuan Liao
E-mail:changyunlei20@mails.ac.cn;liaojj@aircas.ac.cn
CLC Number:
Yunlei Chang, Jingjuan Liao, Li Zhang. Temporal and Spatial Variations of Mangroves and Their Driving Factors in Southeast Asia[J].Tropical Geography, 2023, 43(1): 31-42.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Table 1

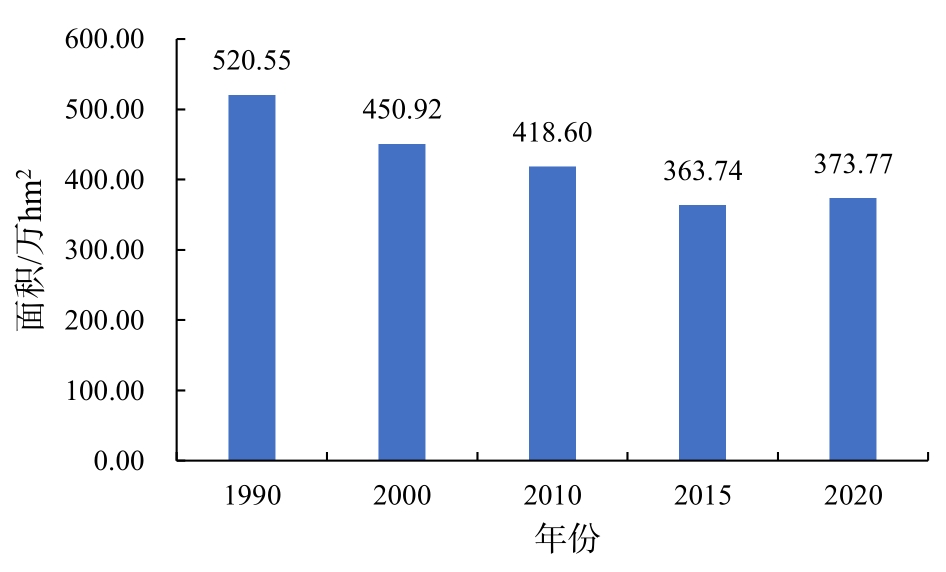

Mangrove area in different countries of Southeast Asia from 1990 to 2020
国家/地区 | 1990年 | 2000年 | 2010年 | 2015年 | 2020年 |
---|---|---|---|---|---|
东南亚 | 520.55 | 450.92 | 418.60 | 363.74 | 373.77 |
缅甸 | 62.29 | 49.20 | 46.50 | 35.03 | 35.34 |
柬埔寨 | 5.02 | 4.47 | 5.38 | 3.81 | 3.79 |
越南 | 22.96 | 19.93 | 15.36 | 13.19 | 7.06 |
泰国 | 28.87 | 24.26 | 22.21 | 17.20 | 15.42 |
马来西亚 | 58.70 | 53.40 | 48.65 | 39.86 | 40.62 |
新加坡 | 0.07 | 0.06 | 0.05 | 0.01 | 0.00 |
印度尼西亚 | 313.50 | 274.51 | 257.64 | 232.29 | 244.78 |
东蒂汶 | 0.22 | 0.09 | 0.08 | 0.03 | 0.03 |
菲律宾 | 27.83 | 23.94 | 21.72 | 21.55 | 25.92 |
文莱 | 1.10 | 1.05 | 1.03 | 0.79 | 0.84 |
Table 3

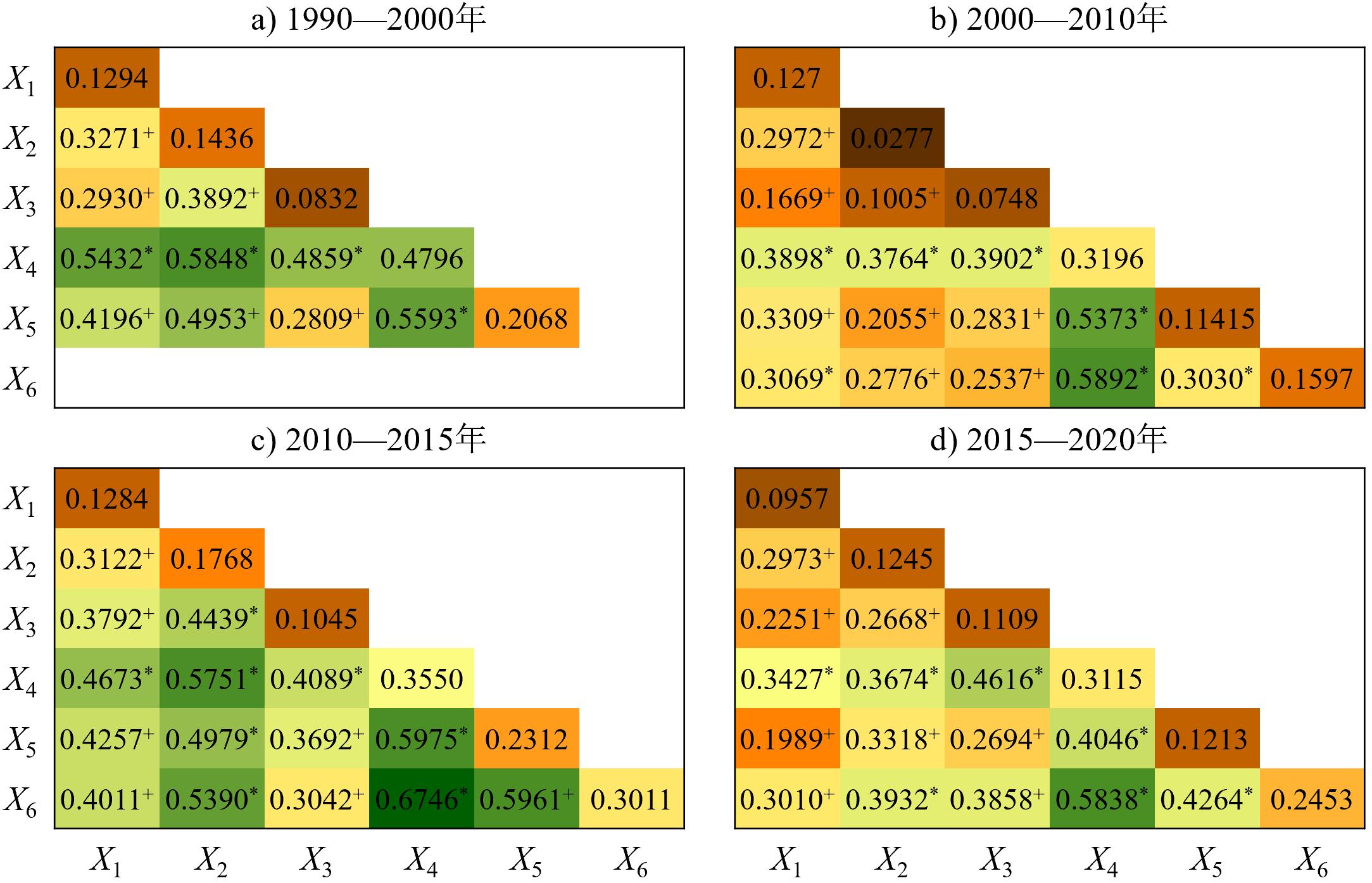

Driving forces of mangrove area change drivers in Southeast Asia from 1990 to 2020
时间 | 因子 | 年均降雨(X1) | 年均温(X2) | 地形(X3) | 养殖池面积(X4) | 红树林距道路最短距离(X5) | 人口(X6) |
---|---|---|---|---|---|---|---|
1990—2000年 | q | 0.129 | 0.144 | 0.083 | 0.480 | 0.207 | — |
p | 0 | 0 | 0 | 0 | 0 | — | |
2000—2010年 | q | 0.020 | 0.228 | 0.075 | 0.320 | 0.214 | 0.150 |
p | 0 | 0 | 0 | 0 | 0 | 0 | |
2010—2015年 | q | 0.128 | 0.177 | 0.105 | 0.355 | 0.231 | 0.301 |
p | 0 | 0 | 0 | 0 | 0 | 0 | |
2015—2020年 | q | 0.096 | 0.124 | 0.111 | 0.311 | 0.121 | 0.245 |
p | 0 | 0 | 0 | 0 | 0 | 0 |
Alejandro Berlanga-Robles C, Ruiz-Luna A and Nepita Villanueva M R. 2019. Seasonal Trend Analysis (STA) of MODIS Vegetation Index Time Series for the Mangrove Canopy of the Teacapan-Agua Brava Lagoon System, Mexico. GIScience & Remote Sensing, 56(3): 338-361. | |
Alongi D M. 2002. Present State and Future of the World's Mangrove Forests. Environmental Conservation, 29(3): 331-349. | |
晁碧霄,王玉玉,俞炜炜.2021. 广东省土地利用驱动下红树林潜在生境预测.中国环境科学,41(11):5282-5291. | |
Chao Bixiao, Wang Yuyu and Yu Weiwei. 2021. Predicting Mangrove Forest Distribution Driven by Land Uses in Guangdong Province. China Environmental Science, 41(11): 5282-5291. | |
Chen J, Yang S and Li H. 2013. Research on Geographical Environment Unit Division Based on the Method of Natural Breaks (Jenks). Remote Sensing, 3: 47-50. | |
Costa P, Dorea A and Mariano-Neto E. 2015. Are There General Spatial Patterns of Mangrove Structure and Composition along Estuarine Salinity Gradients in Todos os Santos Bay. Estuarine, Coastal and Shelf Science, 166: 83-91. | |
DasGupta R and Shaw R. 2013. Cumulative Impacts of Human Interventions and Climate Change on Mangrove Ecosystems of South and Southeast Asia: An Overview. Journal of Ecosystems, 2013: 1-15. | |
Friess D A, Thompson B S and Brown B. 2016. Policy Challenges and Approaches for the Conservation of Mangrove Forests in Southeast Asia. Conservation Biology, 30(5): 933-949. | |
Gandhi S and Jones T G. 2019. Identifying Mangrove Deforestation Hotspots in South Asia, Southeast Asia and Asia-Pacific. Remote Sensing, 11(6): 728. | |
Gorelick N, Hancher M and Dixon M. 2017. Google Earth Engine: Planetary-Scale Geospatial Analysis for Everyone. Remote Sensing of Environment, 202: 18-27. | |
Guo Y, Liao J and Shen G. 2021. Mapping Large-Scale Mangroves along the Maritime Silk Road from 1990 to 2015 Using a Novel Deep Learning Model and Landsat Data. Remote Sensing, 13(2): 245. | |
Hai N T, Dell B, Phuong V T and Harper R J. 2020. Towards a More Robust Approach for the Restoration of Mangroves in Vietnam. Annals of Forest Science, 77(1): 1-18. | |
Halder S, Samanta K and Das S. 2021. Monitoring the Inter-Decade Spatial-Temporal Dynamics of the Sundarban Mangrove Forest of India from 1990 to 2019. Regional Studies in Marine Science, 44: 101718. | |
Hamilton S E and Casey D. 2016. Creation of a High Spatio‐Temporal Resolution Global Database of Continuous Mangrove Forest Cover for the 21st Century (CGMFC‐21). Global Ecology and Biogeography, 25(6): 729-738. | |
Huete A, Didan K, Miura T, Rodriguez E P, Gao X and Ferreira L G. 2002. Overview of the Radiometric and Biophysical Performance of the Modis Vegetation Indices. Remote Sensing of Environment, 83(1/2): 195-213. | |
Huitric M, Folke C and Kautsky N. 2002. Development and Government Policies of the Shrimp Farming Industry in Thailand in Relation to Mangrove Ecosystems. Ecological Economics, 40(3): 441-455. | |
贾明明,王宗明,毛德华,黄春林,路春燕. 2021. 面向可持续发展目标的中国红树林近50年变化分析. 科学通报,66(30):3886-3901. | |
Jia Mingming, Wang Zongming, Mao Dehua, Huang Chunlin and Lu Chunyan. 2021. Changes of Mangrove Forests in China in the Last 50 Years for Sustainable Development Goals. Chinese Science Bulletin, 66(30): 3886-3901. | |
Kuenzer C, Bluemel A and Gebhardt S. 2011. Remote Sensing of Mangrove Ecosystems: A Review. Remote Sensing, 3(5): 878-928. | |
Kusmana C. 2014. Distribution and Current Status of Mangrove Forests in Indonesia. In: Faridah-Hanum I, Latiff A, Khalid Rehman Hakeem and Munir Ozturk. Mangrove Ecosystems of Asia. New York: Springer, 37-60. | |
Latiff A and Faridah-Hanum I. 2014. Mangrove Ecosystem of Malaysia: Status, Challenges and Management Strategies. In: Faridah-Hanum I, Latiff A, Khalid Rehman Hakeem and Munir Ozturk. Mangrove Ecosystems of Asia. New York: Springer, 1-22. | |
廖静娟. 2022. 2000—2020年全球30 m红树林空间分布产品(GMF30_2000-2020). (2022-04-02)[2022-08-19]. https://data.casearth.cn/sdo/detail/62ff4caa819aec75a535cbe8. | |
Liao Jingjuan. 2022. Spatial Distribution Products of 30m Mangrove Forests in the World from 2000 to 2020. (2022-04-02) [2022-08-19]. https://data.casearth.cn/sdo/detail/62ff4caa819aec75a535cbe8. | |
林鹏. 1997. 中国红树林生态系统研究. 北京:科学出版社. [Lin Peng. 1997. Study of China's Mangrove Ecosystem. Beijing: Science Press.] | |
Liu H Q and Huete A. 1995. A Feedback Based Modification of the NDVI to Minimize Canopy Background and Atmospheric Noise. IEEE Transactions on Geoscience and Remote Sensing, 33: 457-465. | |
罗菊花. 2019. 1990—2015年海上丝绸之路沿线30 m Landsat TM/OLI近岸水产养殖区分布范围及其变化数据集. (2019-10-15)[2022-04-20]. https://data.casearth.cn/sdo/detail/5da578aa329b5613607cc96d. | |
Luo Juhua. 2019. Spatial Distribution and Change of 30m Landsat TM/OLI Nearshore Aquaculture Areas along the Maritime Silk Road from 1990 to 2015. (2019-10-15) [2022-04-20]. https://data.casearth.cn/sdo/detail/5da578aa329b5613607cc96d. | |
毛丽君. 2011. 基于遥感的广东湛江红树林湿地动态变化研究. 南京:南京林业大学. | |
Mao Lijun. 2011. Dynamic Change of Mangrove Wetland in Zhanjiang, Guangdong Province Based on Remote Sensing. Nanjing: Nanjing Forestry University. | |
Milich L and Weiss E. 2000. GAC NDVI Interannual Coefficient of Variation (CoV) Images: Ground Truth Sampling of the Sahel along North-South Transects. International Journal of Remote Sensing, 21(2): 235-260. | |
Patel N N, Angiuli E and Gamba P. 2015. Multitemporal Settlement and Population Mapping from Landsat Using Google Earth Engine. International Journal of Applied Earth Observation and Geoinformation, 35: 199-208. | |
Pham T D and Yoshino K. 2016. Impacts of Mangrove Management Systems on Mangrove Changes in the Northern Coast of Vietnam. Tropics, 24(4): 141-151. | |
Richards D R and Friess D A. 2016. Rates and Drivers of Mangrove Deforestation in Southeast Asia, 2000-2012. Proceedings of the National Academy of Sciences, 113(2): 344-349. | |
Roy A K D. 2014. Determinants of Participation of Mangrove-Dependent Communities in Mangrove Conservation Practices. Ocean & Coastal Management, 98: 70-78. | |
Sen P K. 1968. Estimates of the Regression Coefficient based on Kendall's Tau. Journal of the American Statistical Association, 63(324): 1379-1389. | |
Shelestov A, Lavreniuk M and Kussul N. 2017. Exploring Google Earth Engine Platform for Big Data Processing: Classification of Multi-Temporal Satellite Imagery for Crop Mapping. Frontiers in Earth Science, 5: 17. | |
Tucker C J, Newcomb W W and Los S O. 1991. Mean and Inter-Year Variation of Growing-Season Normalized Difference Vegetation Index for the Sahel 1981-1989. International Journal of Remote Sensing, 12(6): 1133-1135. | |
Veettil B K, Pereira S F R and Quang N X. 2018. Rapidly Diminishing Mangrove Forests in Myanmar (Burma): A Review. Hydrobiologia, 822(1): 19-35. | |
Walters B B. 2004. Local Management of Mangrove Forests in the Philippines: Successful Conservation or Efficient Resource Exploitation. Human Ecology, 32(2): 177-195. | |
王劲峰,徐成东. 2017. 地理探测器:原理与展望. 地理学报,72(1):116-134. | |
Wang Jinfeng and Xu Chengdong. 2017. Geodetector: Principles and Prospects. Journal of Geographical, 72(1): 116-134. | |
袁丽华,蒋卫国,申文明,刘颖慧,王文杰,陶亮亮,郑华,刘孝富. 2013. 2000—2010年黄河流域植被覆盖的时空变化. 生态学报,33(24):7798-7806. | |
Yuan Lihua, Jiang Weiguo, Shen Wenming, Liu Yinghui, Wang Wenjie, Tao Liangliang, Zheng Hua and Liu Xiaofu. 2013. Temporal and Spatial Changes of Vegetation Cover in the Yellow River Basin from 2000 to 2010. Acta Ecologica Sinica, 33(24): 7798-7806. | |
张和钰,陈传明,郑行洋,张丽琼,贾高举. 2013. 漳江口红树林国家级自然保护区湿地生态系统服务价值评估. 湿地科学,11(1):108-113. | |
Zhang Heyu, Chen Chuanming, Zheng Hangyang, Zhang Liqiong and Jia Gaoju. 2013. Evaluation of Wetland Ecosystem Service Value in Zhangjiangkou Mangrove National Nature Reserve. Wetland Science, 11(1): 108-113. | |
赵玉灵. 2010. 珠江口地区近30年海岸线与红树林湿地遥感动态监测. 国土资源遥感,(S1):178-184. | |
Zhao Yuling. 2010. Remote Sensing Dynamic Monitoring of Shoreline and Mangrove Wetland in the Pearl River Estuary in Recent 30 Years. Remote Sensing for Land and Resources, (S1): 178-184. | |
郑艺,林懿琼,周建,甘伟修,林广旋,许方宏,林光辉. 2019. 基于资源三号的雷州半岛红树林种间分类研究. 国土资源遥感,31(3):201-208. | |
Zheng Yi, Lin Yiqiong, Zhou Jian, Gan Weixiu, Lin Guangxuan, Xu Fanghong and Lin Guanghui. 2019. Interspecific Classification of Mangroves in Leizhou Peninsula based on ZY-3. Remote Sensing for Land and Resources, 31(3): 201-208. | |
周振超,李贺,黄翀,刘庆生,刘高焕,何云,于涵. 2018. 红树林遥感动态监测研究进展. 地球信息科学学报,20(11):1631-1643. | |
Zhou Zhenchao, Li He, Huang Chong, Liu Qingsheng, Liu Gaohuan, He Yun and Yu Han. 2018. Research Progress of Mangrove Remote Sensing Dynamic Monitoring. Journal of Geo-Information Science, 20(11): 1631-1643. |
