Characteristics and Driving Factors of Industrial Activity Spatial Distribution in Mega-Cities from the 'Land-Building' Perspective: A Case Study of Shenzhen
Received date: 2024-03-05
Revised date: 2024-05-22
Online published: 2025-03-14
Megacities serve as primary spatial carriers of industrialization and sources of innovation and upgrading. Existing research predominantly relies on business registration data to identify the micro-locations of industrial activities; however, this approach suffers from limitations such as low identification accuracy and difficulties in subdividing the types of industrial activities. This study utilizes Shenzhen as a case and constructs a new method for identifying the locations of industrial activities based on the "Land-Building" perspective. By integrating land use and building data and by employing kernel density estimation, spatial autocorrelation analysis, and spatial econometric models, this study systematically examined the spatial distribution characteristics and factors influencing industrial production and R&D activities. The findings reveal that 1) the overall spatial distribution of industrial activities in Shenzhen exhibits a pattern of "dense in the north and sparse in the south," with 95.06% of industrial activity buildings located in the six districts outside the "Guan" area and 4.94% in the four districts inside the "Guan" area. There are significant differences between the spatial locations of industrial and industrial production activities. Industrial production activities display a "multicenter contiguous" layout, primarily distributed in the northeastern "Longgang-Pingshan" industrial production zone, the northwestern "Bao'an-Guangming" production zone, and the cross-city production zone at the border between Shenzhen and Dongguan. In contrast, industrial R&D activities exhibit a "single-center scattered" spatial distribution, mainly concentrated in central urban areas such as Nanshan District and Futian District, with key clusters in streets such as Yuehai, Xili, and Xixiang. 2) Both urban industrial R&D and production activities exhibited positive spatial autocorrelation and spatial spillover effects. Moran's I index for urban industrial R&D is 0.518, while that for production activities is 0.123, indicating that the spatial autocorrelation and spillover effects of industrial production activities are stronger than those of industrial R&D activities. Industrial production activities can exert economic agglomeration effects over a broad geographical range, whereas industrial R&D activities generate agglomeration effects only in smaller areas. The spatial clustering of industrial production activities centers around Fubao Street, with low-low clustering dominating the fan-shaped area from Xixiang Street to Yantian Street and high-high clustering prevailing outside this area. The spatial clustering of industrial R&D activities exhibits an "interlaced and embedded" pattern, forming a nested spatial distribution. 3) The spatial layout of industrial activities in megacities is the result of the combined effects of multiple factors including socioeconomic development, transportation infrastructure, production and living facilities, and geographical location. However, the driving factors for the microlocation distribution of the two types of activities differ. Factors such as population density, industrial development, highways, railway stations, commercial facilities and administrative area size positively influenced the spatial agglomeration of industrial production activities. In contrast, the economic level, industrial development, bus stops, subway stations, and financial facilities positively affect the spatial agglomeration of industrial R&D activities. This study suggests that governments should consider the regularity and heterogeneity of the spatial agglomeration of different industrial activities when conducting urban spatial and industrial planning, promote reasonable functional zoning of urban industrial activities, and enhance the supply of industrial development factors to foster the agglomeration and development of industrial activities.
Xuecheng Bi , Dongyin Zhang , Xianquan Ye , Xiang Li , Li Li . Characteristics and Driving Factors of Industrial Activity Spatial Distribution in Mega-Cities from the 'Land-Building' Perspective: A Case Study of Shenzhen[J]. Tropical Geography, 2025 , 45(3) : 374 -385 . DOI: 10.13284/j.cnki.rddl.20240128
表1 平均最近邻距离Table 1 Average nearest neighbor distance |
指标 | 全部工业活动 | 工业生产活动 | 工业研发活动 |
---|---|---|---|
平均观测距离/m | 45.29 | 44.17 | 113.82 |
预期平均距离/m | 134.09 | 139.35 | 464.20 |
最近邻指数 | 0.34 | 0.32 | 0.24 |
Z值 | -271.46 | -269.41 | -84.23 |
P值 | 0.00 | 0.00 | 0.00 |

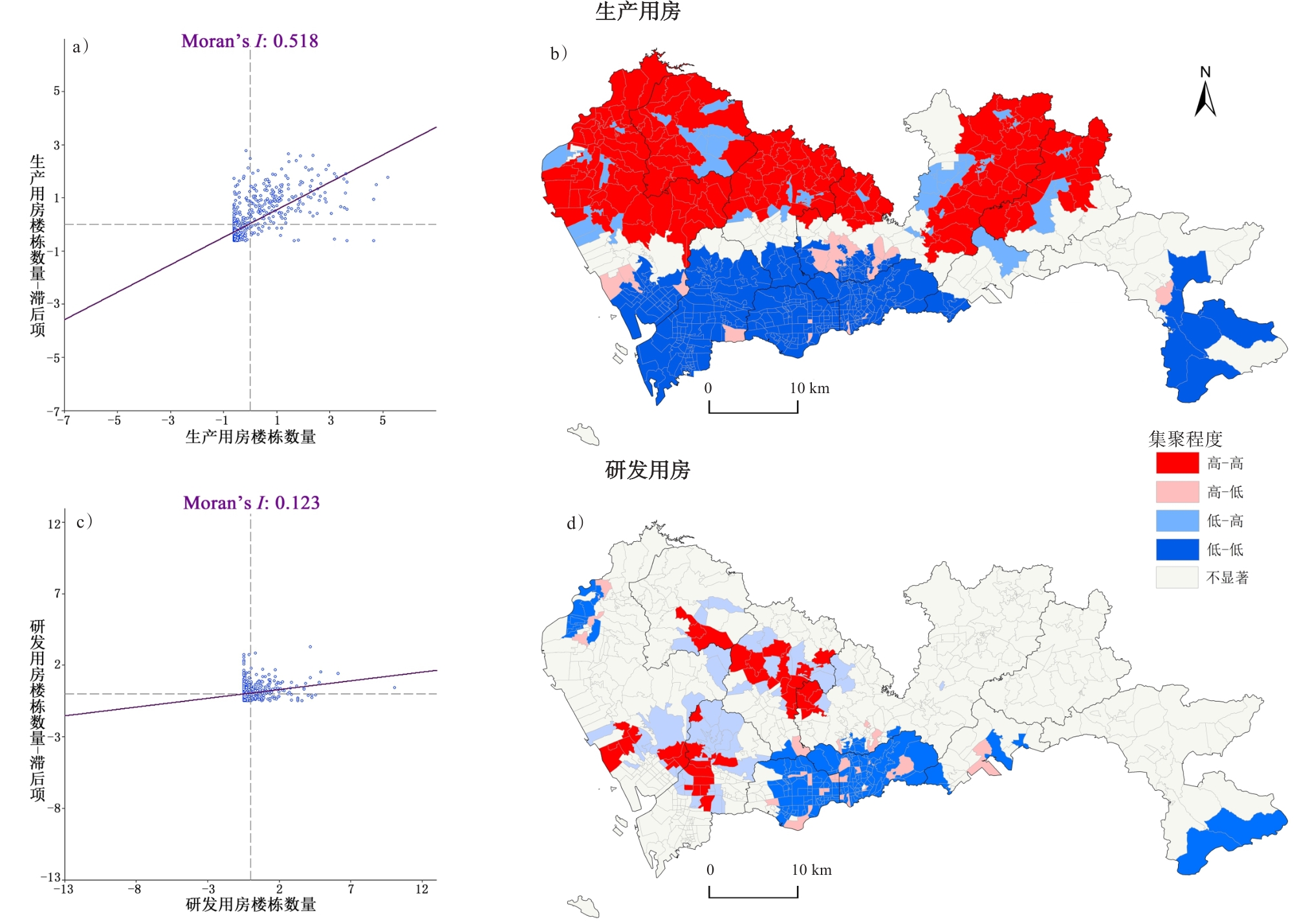

表2 全局空间自相关Moran's I指数Table 2 Global spatial autocorrelation Moran's I indices |
指标 | 工业生产活动 | 工业研发活动 |
---|---|---|
Moran' I 指数 | 0.518 | 0.123 |
预期指数 | -0.002 | -0.002 |
标准差 | 0.024 | 0.023 |
Z值 | 21.775 | 5.349 |
P值 | 0.000 | 0.000 |
表3 工业活动区位分布的影响因素及指标Table 3 Factors and indicators influencing the locational distribution of industrial activities |
变量类型 | 解释名称 | 变量符号 | 指标表征与解释 | 数据来源 |
---|---|---|---|---|
经济社会发展 (Econ_social) | 经济水平 | Economic | 夜间灯光强度 | VIIRS夜间灯光(2021) |
人口密度 | Population | Land scan人口密度 | Land Scan Global(2022) | |
产业发展 | Ind_park | 产业园区数量 | 深圳市房屋租赁参考价格 查询平台 | |
物价水平 | Price_level | 商品房租金水平 | ||
交通基础设施 (Tran_infra) | 火车站 | Rail_station | 社区几何中心到最近火车站的直线距离 | 百度POI数据 |
公交站 | Bus_station | 公交站数量 | ||
地铁站 | Sub_station | 地铁站数量 | ||
高速入口 | Expressway | 高速入口数量 | ||
生产生活配套 (Prod_living) | 教育配套 | Education | 幼儿园及中小学数量 | 百度POI数据 |
医疗配套 | Hospital | 社康、专科及综合等医疗机构数量 | ||
商业配套 | Business | 商超、零售、购物中心等网点数量 | ||
金融配套 | Finance | 证券、保险与银行等网点数量 | ||
地理区位环境 (Geo_location) | 行政区面积 | Area | 社区总面积 | 标准地图计算得到 |
生态用地 | Ecology | 非人造地表占比 | GlobeLand 30(2020) | |
地理区位 | Location | 社区所处的区位 | “关内”取1,“关外”取0 |
表4 实证结果Table 4 Empirical results |
模型变量 | (1) | (2) | (3) | (4) | ||||
---|---|---|---|---|---|---|---|---|
OLS | 空间滞后 | OLS | 空间滞后 | |||||
空间自回归 | W _Y | ― | 0.269***(0.038) | ― | 0.148***(0.051) | |||
常数项 | C | 85.884**(43.04) | 26.405(41.432) | -17.45***(6.524) | -16.234**(6.391) | |||
经济社会发展 | Economic | -0.447(0.386) | -0.245(0.366) | 0.138**(0.058) | 0.121**(0.057) | |||
Population | 0.79**(0.35) | 0.714**(0.331) | -0.024(0.053) | -0.022(0.052) | ||||
Ind_park | 3.05***(0.167) | 2.685***(0.166) | 0.107***(0.025) | 0.102***(0.025) | ||||
Price_level | -0.58***(0.167) | -0.343**(0.161) | 0.018(0.025) | 0.011(0.025) | ||||
交通基础设施 | Rail_station | -2.751***(0.843) | -1.867**(0.806) | 0.286**(0.128) | 0.29**(0.125) | |||
Bus_station | -0.3(0.467) | -0.266(0.442) | 0.529***(0.071) | 0.512***(0.07) | ||||
Sub_station | 2.139(3.453) | 2.562(3.265) | 1.32**(0.523) | 1.356***(0.513) | ||||
Expressway | 1.801***(0.405) | 1.51***(0.384) | 0.075(0.061) | 0.07(0.06) | ||||
生产生活配套 | Education | 0.571(0.695) | 1.062(0.657) | -0.084(0.105) | -0.073(0.103) | |||
Hospital | -2.233(2.192) | -0.999(2.078) | -0.033(0.332) | -0.029(0.326) | ||||
Business | 0.557***(0.108) | 0.438***(0.103) | -0.061***(0.016) | -0.06***(0.016) | ||||
Finance | -0.559***(0.171) | -0.519***(0.162) | 0.082***(0.026) | 0.083***(0.025) | ||||
地理区位环境 | Area | 3.092***(1.044) | 3.323***(0.988) | -0.452***(0.158) | -0.444***(0.155) | |||
Ecology | 5.371(12.681) | 0.103(12.035) | 0.39(1.922) | 0.299(1.883) | ||||
Location | 5.182(10.219) | 16.258(9.76) | 0.824(1.549) | 1.274(1.518) | ||||
拟合优度 | R 2 | 0.655 | 0.692 | 0.252 | 0.282 | |||
样本量/个 | N | 669 | 669 | 669 | 669 |
|
1 VIIRS夜间灯光数据网址:https://eogdata.mines.edu/products/special_topics/
2 Land Scan Global数据网址:https://landscan.ornl.gov/
3 GlobeLand30网址:http://www.globallandcover.com/
4 注:1982年6月,国家为了区分经济特区与非经济特区划定了深圳经济特区管理线,该线将深圳经济特区划分为“关内”与“关外”。其中,“关内”指经济特区,包含福田区、罗湖区、南山区与盐田区4个行政区,“关外”指非经济特区,包含宝安区、龙岗区、光明区、龙华区、坪山区与大鹏新区6个行政区;2010-07-01,深圳经济特区范围由原先“关内”4区正式扩展至深圳全市,至2018-01-15,国务院正式同意撤销深圳经济特区管理线。尽管在行政层面上不再区分“关内”与“关外”,但经济特区管理线的影响仍存在,“关内”与“关外”在经济发展、产业结构与城市规划导向方面仍存在显著差异。
5 深圳市房屋租赁参考价格查询平台网址:https://zjj.sz.gov.cn/cyyqzljgcx/index.html
6 百度POI网址:https://lbsyun.baidu.com/products/search
毕学成、李 力:论文选题与构思、数据分析、撰写与修改;
张冬茵、叶先权:数据清洗与修改提升;
李 想:项目支持、论证逻辑指导。
